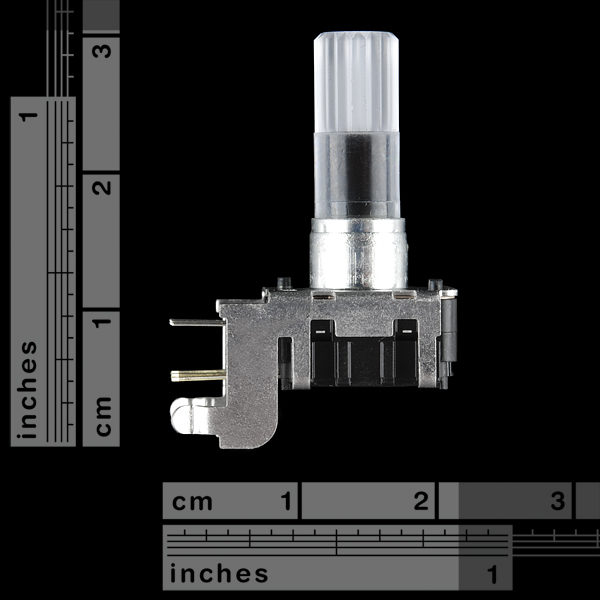

Rotary Encoder – Illuminated (RGB, right-angle)

Rotary Encoder – Illuminated (RGB, right-angle)

3,90

Out of stock

3,90

Availability: Out of stock SKU: COM-10984 Categories: ,

Informami quando l'articolo è disponibile.

Description

Rotary encoders can be used similarly to potentiometers. The difference being that that an encoder has full rotation without limits (It just goes round and round). They output gray code so that you can tell how much and in which direction the encoder has been turned. They’re great for navigating menu screens and things like that. This encoder mounts at a right angle so it’s perfect for things like control panels and rack-mount enclosures.

This encoder is especially cool because it has a common anode RGB LED built in, as well as a push-button. Look below for the clear knob that goes with this potentiometer.

Features:

Switch Travel: 0.5mm
Shaft Diameter: 6.0mm
Shaft Length: 18mm
Right-Angle Through-Hole Mount
24 Pulses per Rotation
Red/Green/Blue LED
Pushbutton

Documents:

Datasheet
Dimensional Drawing
Tutorial and Arduino Project
bildr Tutorial

Additional information

Weight 0,05 kg
Dimensions 5 × 1 × 3 cm
Produttore

Senza marca/Generico

MPN

COM-10984-M6

Brand

Sparkfun
