Panel Mount 100K potentiometer (Breadboard Friendly) – 100KB

Panel Mount 100K potentiometer (Breadboard Friendly) – 100KB


In stock


Potenziometro lineare da 100 KOhm +dado +rondella. Breadboard friendly. Montabile su pannello.

Availability: 10 in stock SKU: AD1831 Categories: , Tag:

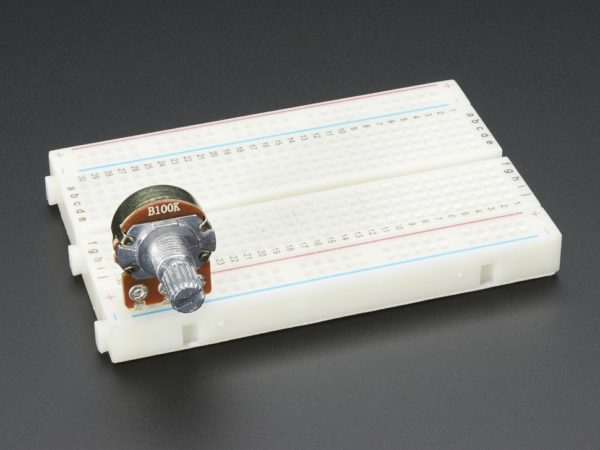

This potentiometer is a two-in-one, good in a breadboard or with a panel. Its a fairly standard linear taper 100K ohm potentiometer, with a grippy shaft. Its smooth and easy to turn, but not so loose that it will shift on its own. We like this one because the legs are 0.2″ apart with pin-points, so you can plug it into a breadboard or perfboard. Once you’re done prototyping, you can drill a hole into your project box and mount the potentiometer that way.


Body: 16mm / 0.6″
Body Circumference: 50mm / 2″
Shaft Length: 15mm / 0.6″
Weight: 6g

100K ohm potentiometer, linear taper
100,000 Cycle Life
Rotational travel: 300 °
Static Stop Strength: 90 oz-in
Rotational Torque: 0.5 to 1.25 oz-in
P160KN-0QC15B10K Datasheet

Additional information

Weight 0,05 kg
Dimensions 5 × 1 × 3 cm
