4 MHz Crystal 20pF capacitors

4 MHz Crystal 20pF capacitors




Oscillatore al cristallo a 4MHz +2 condensatori da 20pF . Breadboard friendly.

Versione disponibile:: 1 disponibili COD: AD2212 Categorie: , ,
Visualizza carrello

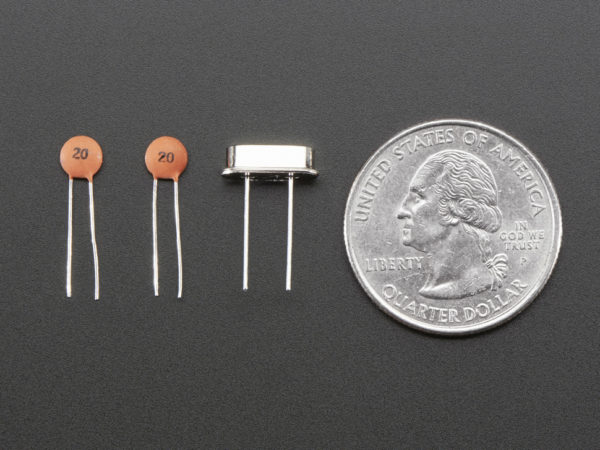

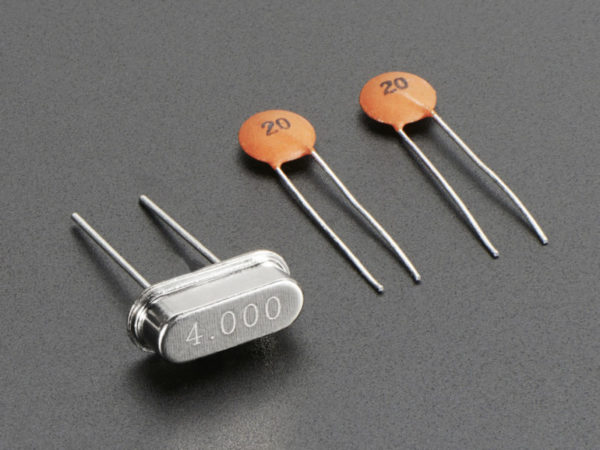

Keep your microcontroller tickin' with a a fancy timing crystal. This 4.000 MHz model comes in a HC49/US 'short style' standard package and is breadboard friendly and easy to use with any microcontroller or device that requires an external crystal. We even include two 20pF capacitors!

The crystal has 30PPM tolerance, 50PPM stability so it's good even for high precision needs (USB timing, long-term time-keeping, RF/PLL/VCO driving).

To use, connect the two pins to XTAL-in and XTAL-out on your circuit (the package is symmetric so use whichever pin) and one capacitor each from a crystal pin to ground. Check your microcontroller datasheet in case you also need a 1 Megaohm resistor or any other components.


Pin Length (capacitors): 13mm / 0.5″
Diameter (capacitors): 5mm / 0.2″
Crystal Datasheet
Crystal Dimensions

Informazioni aggiuntive

Peso 0,05 kg
Dimensioni 5 × 1 × 3 cm
