Optical Encoder Pair Kit for Micro Metal Gearmotors, 5V

Optical Encoder Pair Kit for Micro Metal Gearmotors, 5V

8,72

Disponibile

8,72

Disponibile:: 1 disponibili COD: P-2590 Categoria:
Visualizza carrello

Descrizione

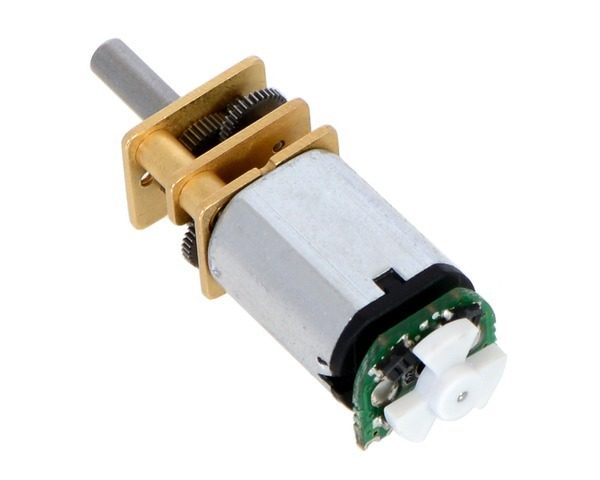

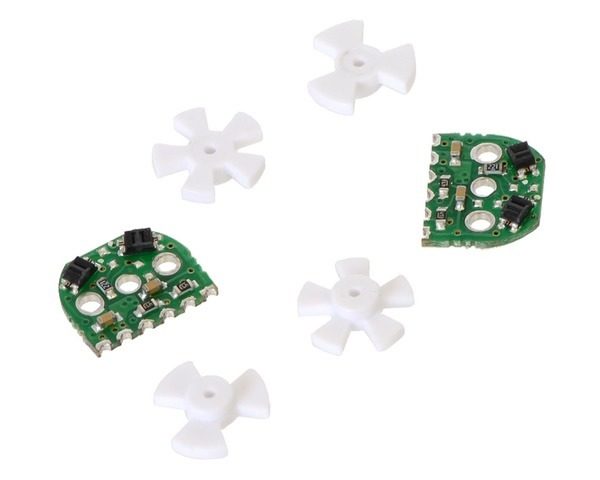

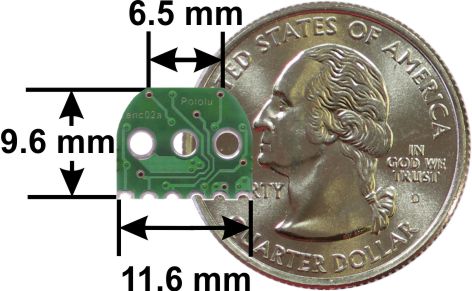

Add quadrature encoders to your LP, MP, or HP micro metal gearmotors (extended back shaft version required) with this kit consisting of two sensor boards, two 3-tooth encoder wheels, and two 5-tooth encoder wheels. The installed system does not exceed the 12 mm ?10 mm cross section of the motors and extends only 5 mm beyond the plastic motor end cap. The 3-tooth wheel provides 12 counts per revolution; using the 5-tooth wheel yields 20 counts per revolution. This version is intended for use at 5 V.

Note: This board is not compatible with the HPCB micro metal gearmotors; it is only compatible with LP, MP, and HP dual-shaft micro metal gearmotors.

Informazioni aggiuntive

Peso 0.05 kg
Dimensioni 5 × 1 × 3 cm
Produttore

Senza marca/Generico

Board
MPN

P-2590

Brand

Pololu
