10 Segment Light Bar Graph LED Display – Blue – KWL-R1025BB

10 Segment Light Bar Graph LED Display – Blue – KWL-R1025BB


In stock


Availability: 1 in stock SKU: AD1815 Categories: ,

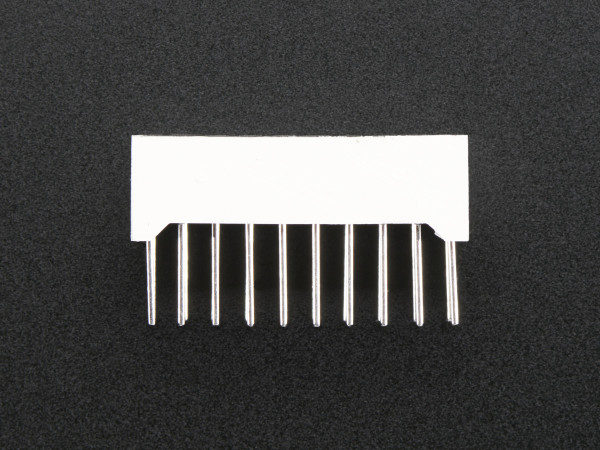

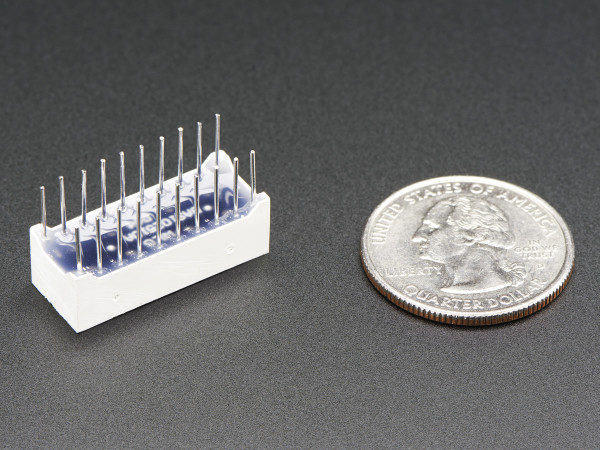

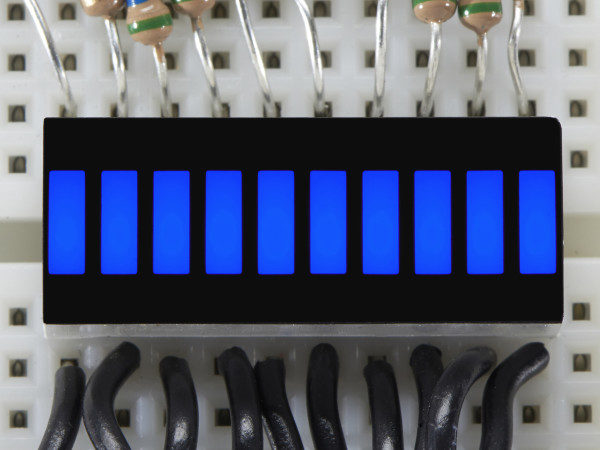

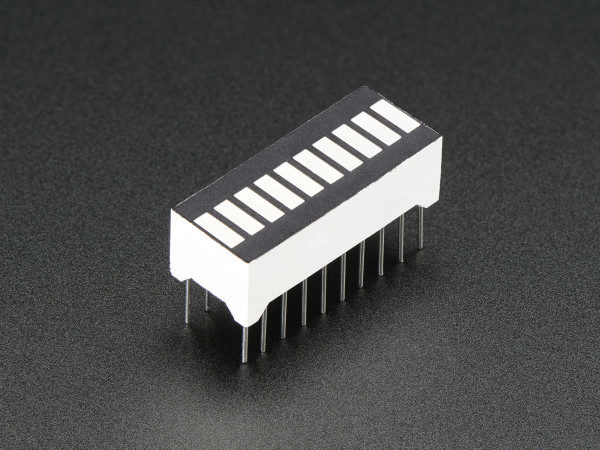

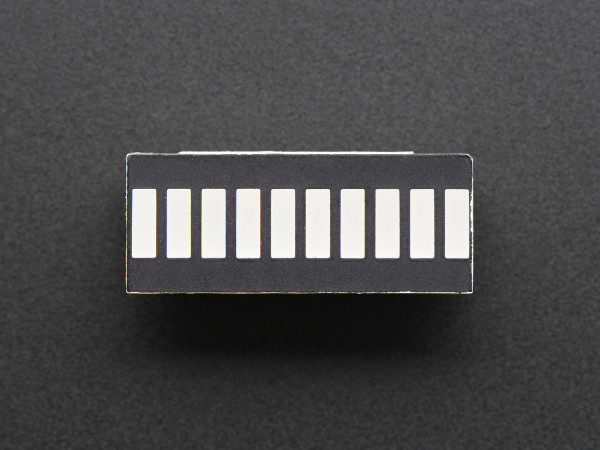

Make a small linear display with a glowing blue color using this elegant LED bargraph. Only 1″ long, it is quite visible but not so large it wont plug into a breadboard! 10 LEDs are contained in the plastic body. This display is bright, beautiful and funky with nice diffused rectangular lenses for a striking look. There are 20 pins,10 on each side, with 0.1″ spacing so you can easily plug it into a breadboard with plenty of space for wiring left over.

There is a playground article about bargraph displays but that one is for non-multiplexed displays. You should also check out the tutorials introducing matrices for ideas on how to drive a multiplexed bargraph.



25.5mm x 10mm x 6.5mm / 1″ x 0.4″ x 0.25″
Height with Pins: 14.5mm / 0.6″
Weight: 2.5g

Additional information

Weight 0,05 kg
Dimensions 5 × 1 × 3 cm
