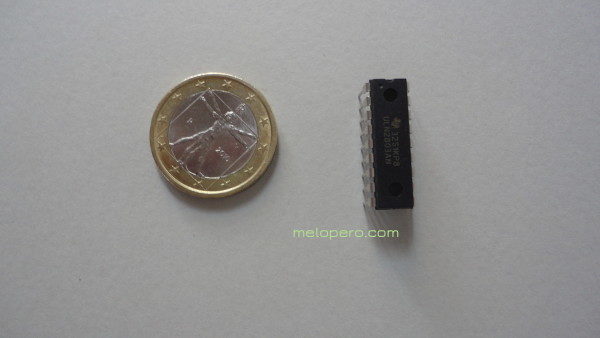

ULN2803A Darlington transistor array

ULN2803A Darlington transistor array


In stock


Driver Darlington a 8 canali, supporta fino a 500mA per canale con tensione collettore-emettitore max 50V, ideali per interfacciare un microcontrollore con solenoidi, motori DC,  relè ecc.. L?input può essere pilotato con logica a 3.3V o 5V.

Availability: 9 in stock SKU: AD970 Categories: , Tag:


The ULN2803A device is a high-voltage, high-current Darlington transistor array. The device consists of eight NPN Darlington pairs that feature high-voltage outputs with common-cathode clamp diodes for switching inductive loads. The collector-current rating of each Darlington pair is 500 mA. The Darlington pairs may be connected in parallel for higher current capability.

Applications include relay drivers, hammer drivers, lamp drivers, display drivers (LED and gas discharge), line drivers, and logic buffers. The ULN2803A device has a 2.7-k? series base resistor for each Darlington pair for operation directly with TTL or 5-V CMOS devices.

Every single output can handle 500mA from 50V.
ULN2803A Datasheet

Additional information

Weight 0,05 kg
Dimensions 5 × 1 × 3 cm
