SparkFun Transceiver Breakout – MAX3232

SparkFun Transceiver Breakout – MAX3232

5,08

Disponibile

5,08

Versione disponibile:: 3 disponibili COD: BOB-11189 Categorie: , , , ,
Visualizza carrello

Descrizione

The ?must have’ IC for TTL/CMOS projects finally has its own breakout board! This is the RS232 converter IC that is capable of running at 3V and communicating with 5V logic.

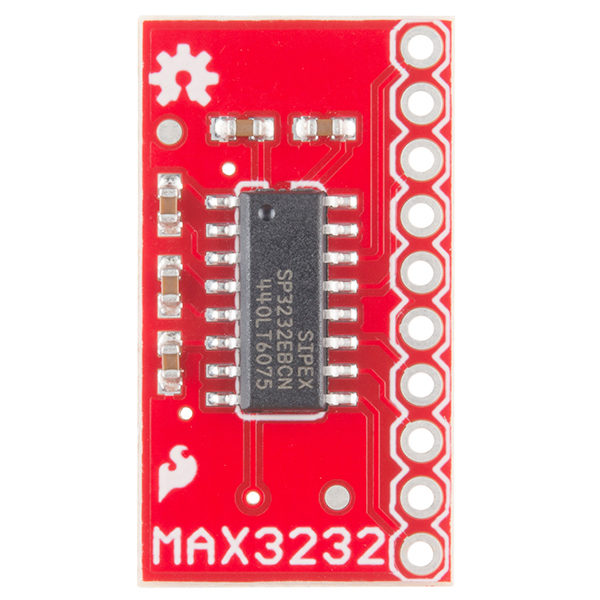

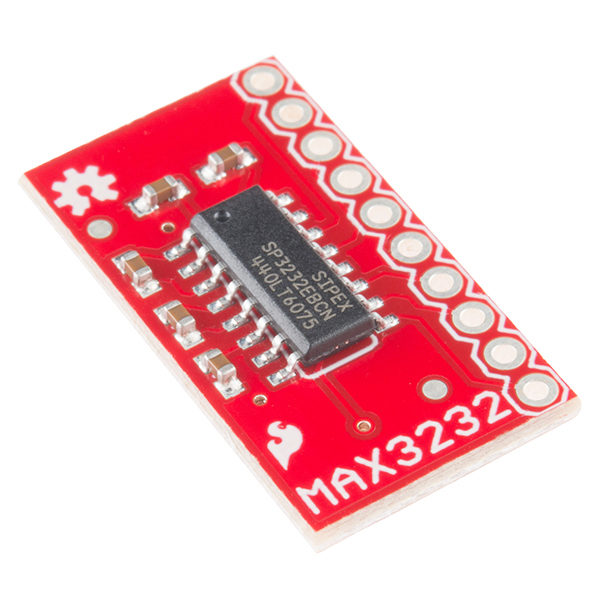

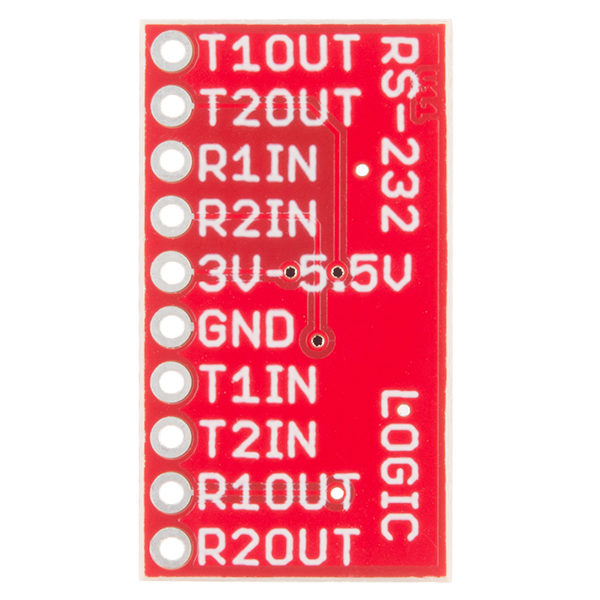

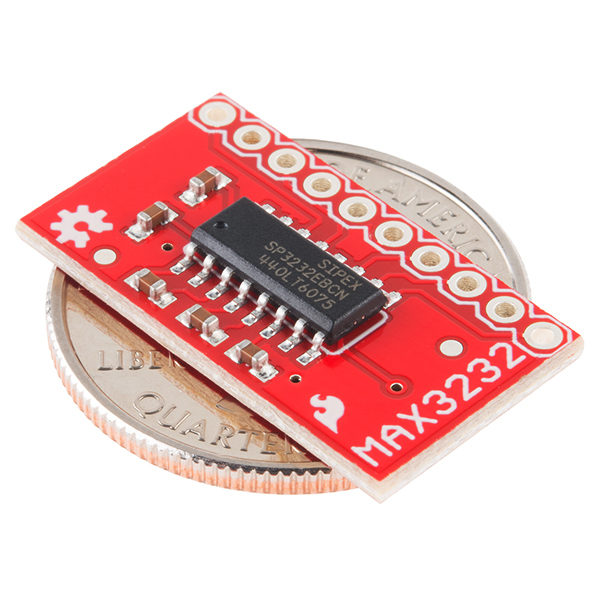

We’ve taken the SOIC package MAX3232 and broken out all the pins you need to set up your RS232 to TTL connection. We’ve also included the necessary 0.1uF charge pump capacitors. Also remember that because the MAX3232 operates at a broader voltage range than the 232 (3 – 5.5V) you can use this on both your 3.3 and 5V projects!

Documents:

Product page
Schematic
Eagle Files
Datasheet (3232EB)
GitHub (Design Files)

Informazioni aggiuntive

Peso 0.05 kg
Dimensioni 5 × 1 × 3 cm
Produttore

Senza marca/Generico

MPN

BOB-11189

Brand

Sparkfun
