Pololu Adjustable Step-Up Voltage Regulator U1V11A

Pololu Adjustable Step-Up Voltage Regulator U1V11A

9,05

Disponibile

9,05

Versione disponibile:: 2 disponibili COD: P-2560 Categorie: , ,
Visualizza carrello

Descrizione

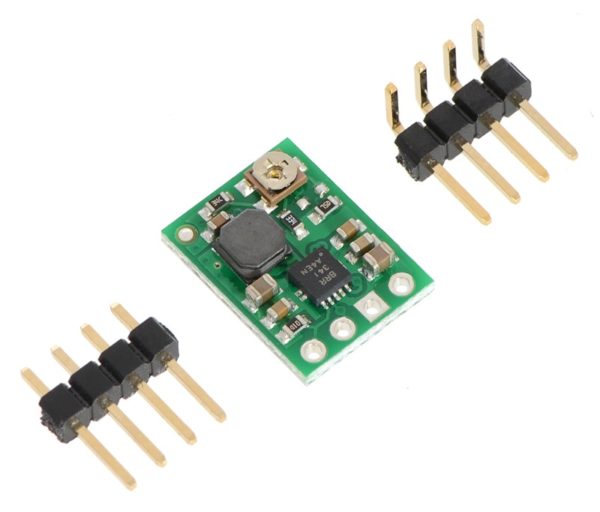

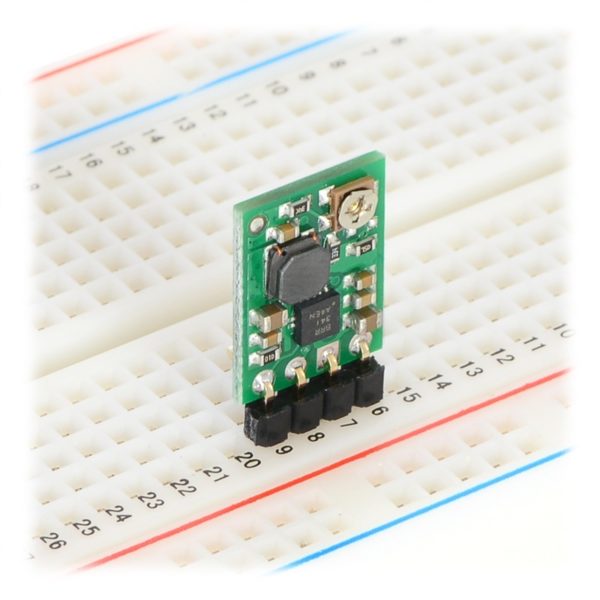

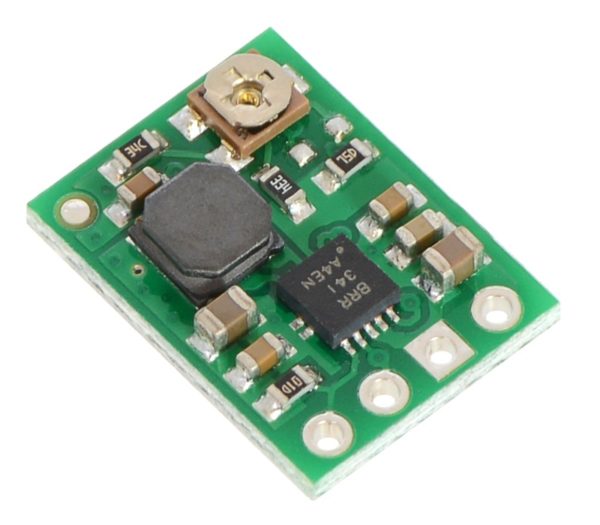

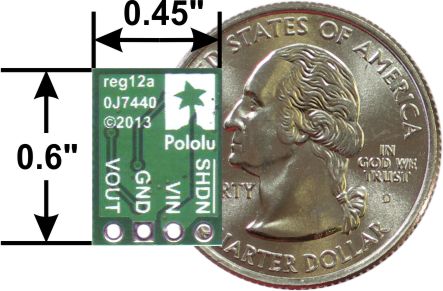

This compact (0.45?×0.6?) U1V11A switching step-up (or boost) voltage regulator efficiently boosts input voltages as low as 0.5 V to an adjustable output voltage between 2 V and 5.25 V. Unlike most boost regulators, the U1V11A offers a true shutdown option that turns off power to the load, and it automatically switches to a linear down-regulation mode when the input voltage exceeds the output. The pins have a 0.1? spacing, making this board compatible with standard solderless breadboards and perfboards.

Compare all products in Step-Up Voltage Regulators.

Description

Specs (11)

Pictures (7)

Resources (3)

FAQs (0)

On the blog (0)

Overview
This adjustable boost (step-up) voltage regulator generates higher output voltages (between 2 V and 5.25 V) from input voltages as low as 0.5 V, and it also automatically switches to a linear down-regulation mode when the input voltage exceeds the output. This makes it great for powering electronics projects from 1 to 3 NiMH, NiCd, or alkaline cells or from a single lithium-ion cell. Additionally, unlike most boost regulators, this unit offers a true shutdown option that turns off power to the load (with typical boost regulators, the input voltage will pass directly through to the output when they are disabled).

When boosting, this module acts as a switching regulator (also called switched-mode power supplies (SMPS) or DC-to-DC converters) and has a typical efficiency between 70% to 90%. The available output current is a function of the input voltage, output voltage, and efficiency (see Typical Efficiency and Output Current section below), but the input current can typically be as high as 1.2 A. This regulator is also available with a fixed 3.3 V or fixed 5 V output, and very similar regulators are available in a much smaller size with a fixed 3.3 V or fixed 5 V output.

The regulator’s thermal shutdown engages at around 140°C and helps prevent damage from overheating. It does not have reverse-voltage protection.

Features

Input voltage: 0.5 V to 5.5 V
Adjustable output voltage from 2 V to 5.25 V
True shutdown option that turns off power to the load
Automatic linear down-regulation when the input voltage is greater than the output voltage
1.2 A switch allows for input currents up to 1.2 A
Good efficiency at light load:

Informazioni aggiuntive

Peso 0,05 kg
Dimensioni 5 × 1 × 3 cm
Brand

Pololu
