Pololu 9V Step-Up/Step-Down Voltage Regulator S10V3F9
4,98 €
- Description
- Additional information
Description

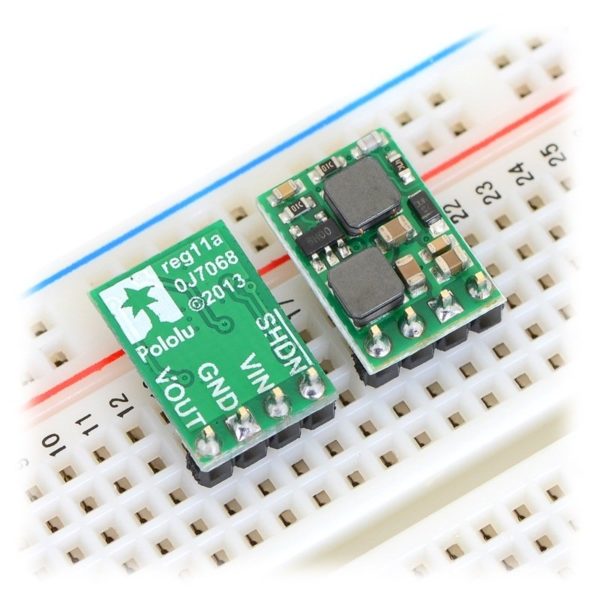

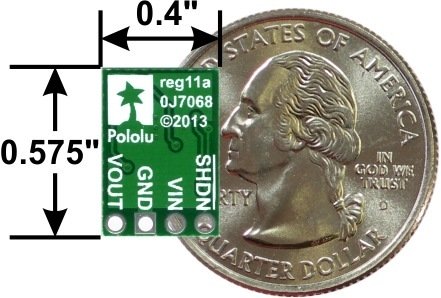

This switching regulator uses the SEPIC topology to produce 9 V from input voltages between 2.5 V and 18 V. The wide input range coupled with its ability to convert both higher and lower input voltages makes it useful for applications where the power supply voltage can vary greatly, as with batteries that start above but discharge below 9 V. The compact (0.4? ?0.575?) module can supply over 300 mA in typical applications.
Select options:
(any output voltage)
5 V
9 V
12 V
Go ?
Compare all products in Step-Up/Step-Down Voltage Regulators.
Description
Specs (10)
Pictures (7)
Resources (1)
FAQs (0)
On the blog (0)

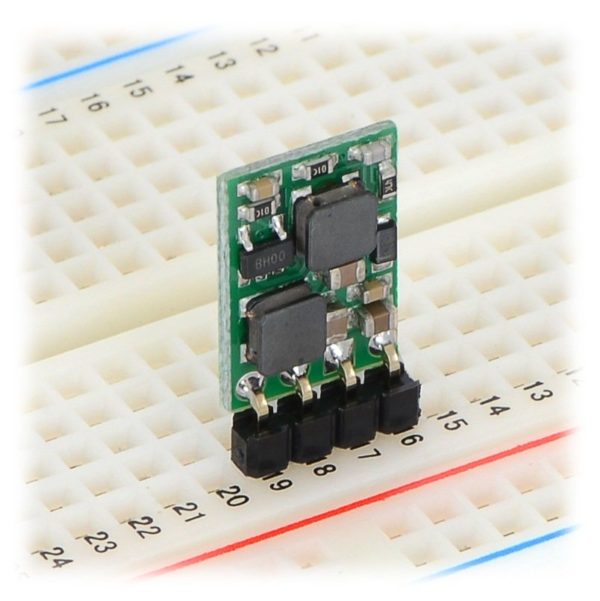

Overview
The Pololu step-up/step-down voltage regulator S10V3F9 is a switching regulator (also called a switched-mode power supply (SMPS) or DC-to-DC converter) with a single-ended primary-inductor converter (SEPIC) topology. It takes an input voltage from 2.5 V to 18 V and increases or decreases the voltage to a fixed 9 V output with a typical efficiency of 70% to 80%.
This flexibility in input voltage is especially well-suited for battery-powered applications in which the battery voltage begins above 9 V and drops below as the battery discharges. Since it lacks the typical restriction that the battery voltage stay above the required voltage throughout its life, new battery packs and form factors can be considered. For instance, a 7-cell battery holder, which might have an 11 V output with fresh alkalines but an 8.4 V nominal voltage with NiMH cells and a 7 V output with partially discharged cells, can now be used to produce a steady 9 V output.
In typical applications, this regulator can deliver over 300 mA continuous; please see the graphs at the bottom of this page for a more detailed characterization. The regulator’s thermal shutdown prevents damage from overheating, but it does not have short-circuit or reverse-voltage protection.
This regulator is also available with a fixed 5 V output or a fixed 12 V output.
Features
Input voltage: 2.5 V to 18 V (can be higher than, the same as, or lower than the 9 V output)
Fixed 9 V output with 4% accuracy
Typical continuous output current: 300 mA (actual continuous output current depends on input voltage; see Typical Efficiency and Output Current section below for details)
Additional information
Weight | 0,05 kg |
---|---|
Dimensions | 5 × 1 × 3 cm |
BRAND | Pololu |
