Pololu 3.3V Step-Up Voltage Regulator U1V11F3

Pololu 3.3V Step-Up Voltage Regulator U1V11F3

4,84

Esaurito

4,84

Versione disponibile:: Esaurito COD: P-2561 Categorie: , ,

Informami quando l'articolo è disponibile.

Descrizione

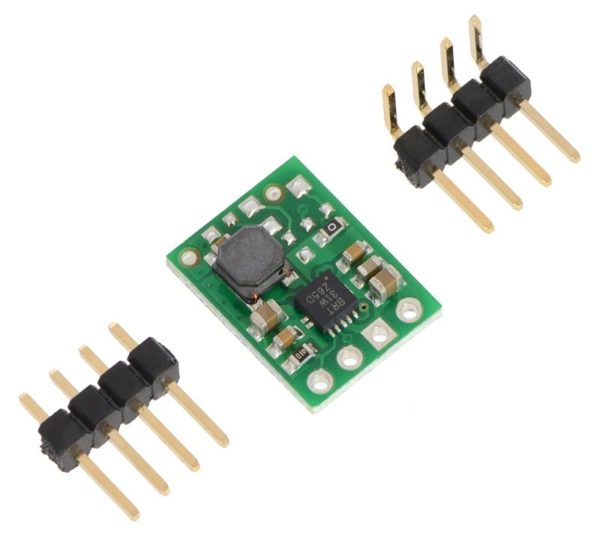

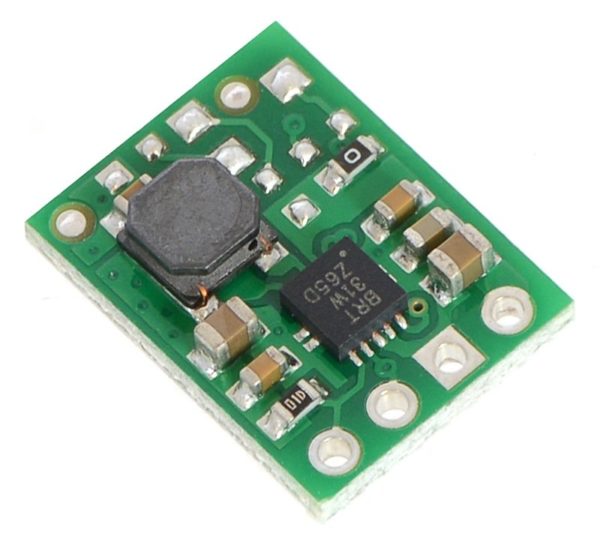

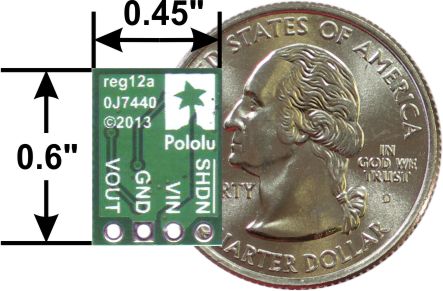

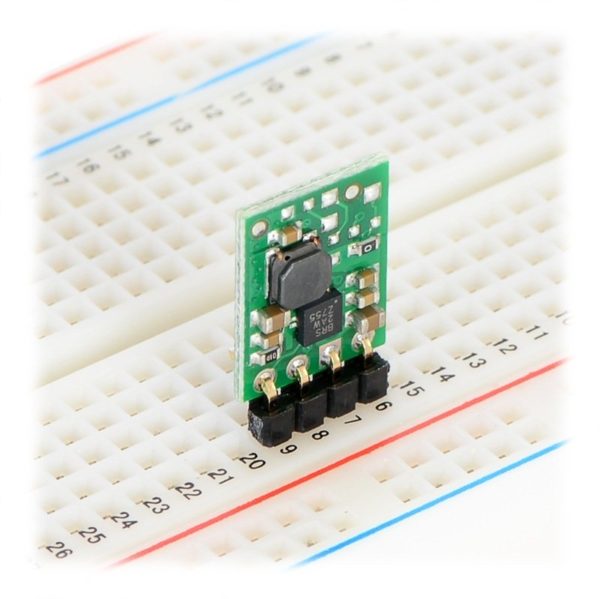

This compact (0.45?×0.6?) U1V11F3 switching step-up (or boost) voltage regulator efficiently generates 3.3 V from input voltages as low as 0.5 V. Unlike most boost regulators, the U1V11F3 offers a true shutdown option that turns off power to the load, and it automatically switches to a linear down-regulation mode when the input voltage exceeds the output. The pins have a 0.1? spacing, making this board compatible with standard solderless breadboards and perfboards.

Select options:
(any output voltage)
3.3 V
5 V
Go ?
Compare all products in Step-Up Voltage Regulators.

Description

Specs (10)

Pictures (5)

Resources (3)

FAQs (0)

On the blog (1)

Overview
This 3.3 V boost (step-up) voltage regulator generates higher output voltages from input voltages as low as 0.5 V, and it also automatically switches to a linear down-regulation mode when the input voltage exceeds the output. This makes it great for powering 3.3 V electronics projects from 1 to 3 NiMH, NiCd, or alkaline cells or from a single lithium-ion cell. Additionally, unlike most boost regulators, this unit offers a true shutdown option that turns off power to the load (with typical boost regulators, the input voltage will pass directly through to the output when they are disabled).

When boosting, this module acts as a switching regulator (also called switched-mode power supplies (SMPS) or DC-to-DC converters) and has a typical efficiency between 70% to 90%. The available output current is a function of the input voltage, output voltage, and efficiency (see Typical Efficiency and Output Current section below), but the input current can typically be as high as 1.2 A. This regulator is also available with a fixed 5 V or adjustable output, and very similar regulators are available in a much smaller size with a fixed 3.3 V or fixed 5 V output.

The regulator’s thermal shutdown engages at around 140°C and helps prevent damage from overheating, but it does not have reverse-voltage protection.

Features

Input voltage: 0.5 V to 5.5 V
Fixed 3.3 V output with 4% accuracy
True shutdown option that turns off power to the load
Automatic linear down-regulation when the input voltage is greater than the output voltage
1.2 A switch allows for input currents up to 1.2 A
Good efficiency at light load:

Informazioni aggiuntive

Peso 0.05 kg
Dimensioni 5 × 1 × 3 cm
Brand

Pololu
