Tic T500 USB Multi-Interface Stepper Motor Controller

Tic T500 USB Multi-Interface Stepper Motor Controller

35,32

Disponibile

35,32

Versione disponibile:: 1 disponibili COD: P-3135 Categoria:
Visualizza carrello

Descrizione

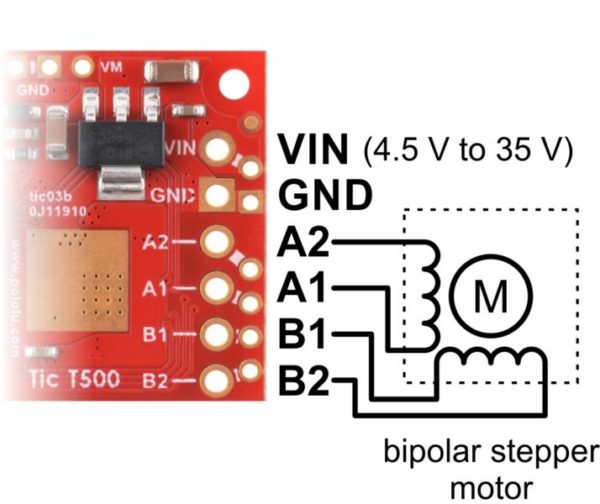

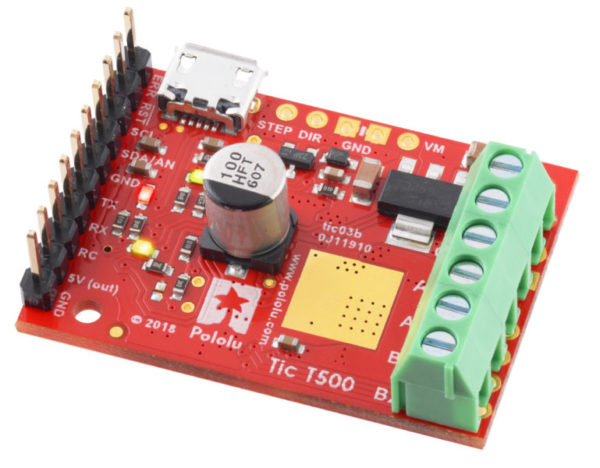

The Tic T500 USB Multi-Interface Stepper Motor Controller makes basic control of a stepper motor easy, with quick configuration over USB using our free software. The controller supports six control interfaces: USB, TTL serial, I²C, analog voltage (potentiometer), quadrature encoder, and hobby radio control (RC). This version incorporates an MPS MP6500 driver, and male headers and terminal blocks are included but not soldered. It can operate from 4.5 V to 35 V and can deliver up to approximately 1.5 A per phase without a heat sink or forced air flow (or 2.5 A max with sufficient additional cooling).

Informazioni aggiuntive

Peso 0,1 kg
Dimensioni 3 × 1 × 2 cm
Produttore

Senza marca/Generico

MPN

P-3135

Brand

Pololu
