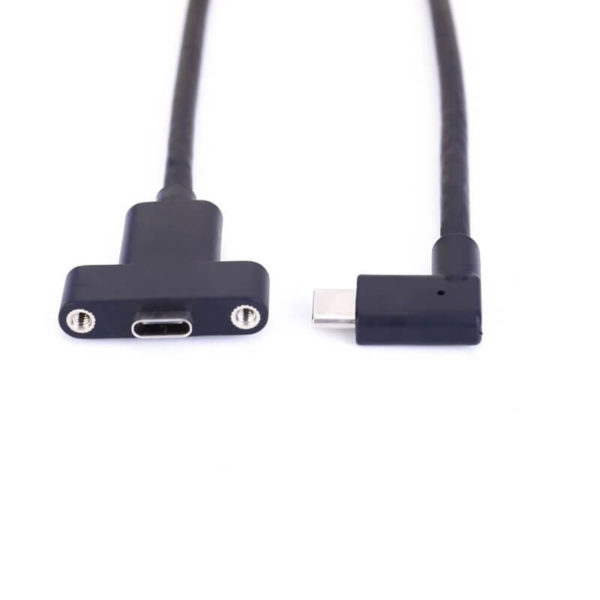

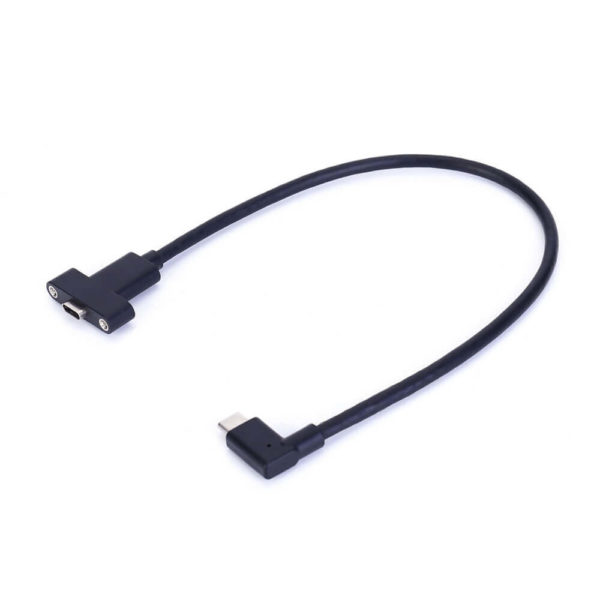

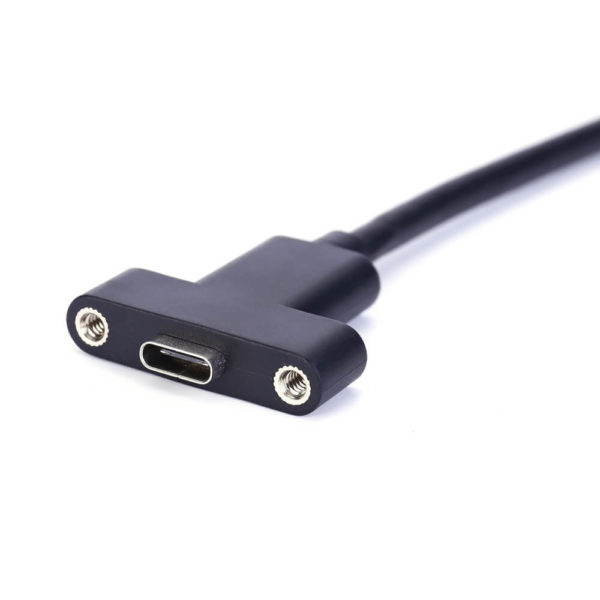

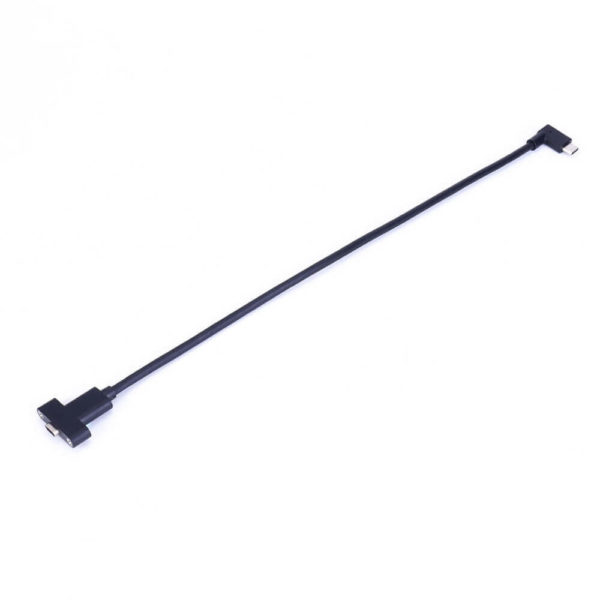

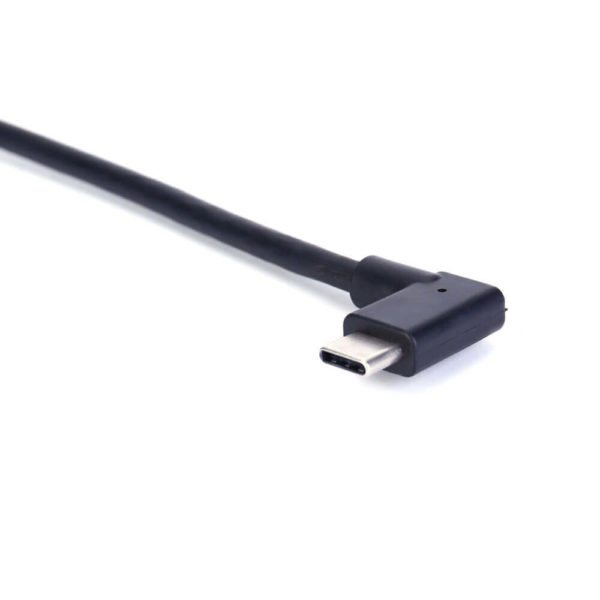

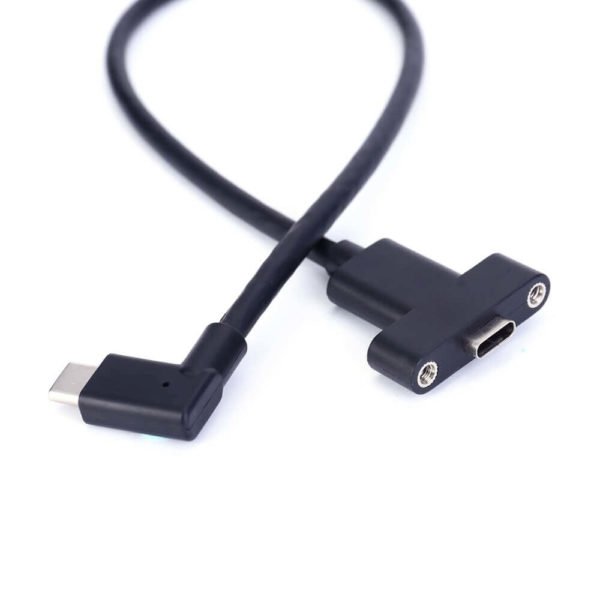

Panel Mount USB 3.1 Type C Male 90 Degree Angle To Female Extension Cable
6,90 €
- Description
Description
High Quality 90 Degree angled USB 3.1 Type C (USB-C) Male to Female Panel Mount Extension Cable is perfect for combining two USB Type C cables to achieve connectivity through a panel. The cable is short and designed for minimal signal loss. It provides a transfer rate up to 10Gbps, and easily attaches to any USB device. Key Features
Specifications
- Length 20cm
- Connector 1: USB 3.1 Type C male
- Connector 2: USB 3.1 Type C female with screw locking
- Nut and Screw type: #4-40 nicel plated
- Gold plated contact, Nickel plated shell
- Cable Conductor: Tinned Copper
- Insulation: Foamed PE SKIN/HDPE
- Wire Gauge: 34/32/26AWG
- Shielding: twisted pair Aluminum Foil, Overall Aluminum Foil, Braiding
- Housing: Injection molding
- Jacket: PVC
- Outter diameter: 4.2±0.2mm
2 screws for panel mounting included.
