Small 6V 1W Solar Panel – Silver

Small 6V 1W Solar Panel – Silver

24,52

Disponibile

24,52

Versione disponibile:: 1 disponibili COD: AD3809 Categorie: ,
Visualizza carrello

Descrizione

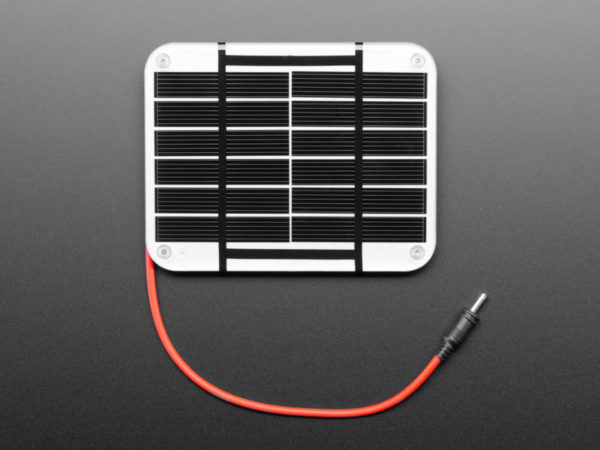

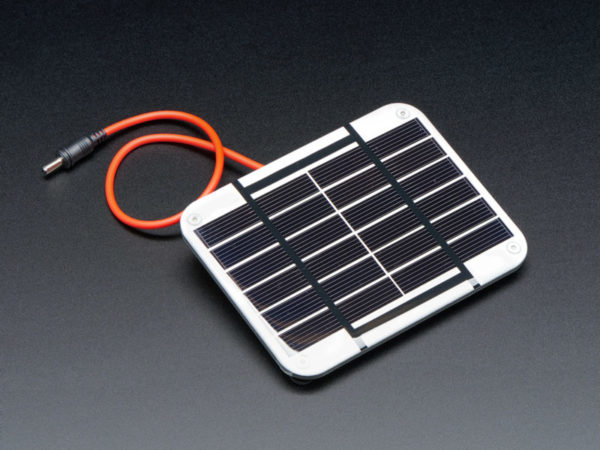

These panels come to us from Voltaic Systems, makers of excellent solar-powered bags and packs. These are waterproof, scratch resistant, and UV resistant. With a high efficiency monocrystalline cell, they output 6V at 180 mA via 3.5mm x 1.1mm DC jack connector. The substrate is an aluminum / plastic composite, specifically designed to be durable and lightweight. They can easily stand up to typical outdoor use including being dropped and leaned on. They're very high quality and are perfect for outdoor projects.

These also come with 4 plastic mounting screws which makes it easy to attach the panel, even to fabric!

To connect, we suggest a 3.5mm OD/1.1mm ID DC jack, or you can use this handy 2.1mm adapter cable which will turn it into a standard 5.5mm/2.1mm DC plug.
TECHNICAL DETAILS

Features

Waterproof (IP67)
UV resistant (10+ year life)
Durable and lightweight
High efficiency monocrystalline cells: 19%
Embedded screws for easy mounting

Size and Weight

3.5″ x 4.4″ x 0.2″ (89mm x 113mm x 5mm)
2.4 oz / 67g

Output

Open Circuit Voltage: 7.7V
Peak Voltage: 6.5V
Peak Current: 180mA
Peak Power: 1.2W
Power Tolerance: +/-10%
For maximum power output, orient the panel towards the sun

Construction

Urethane coating
3mm aluminum-plastic composite substrate

Mounting

Four embedded screws: 4-40 thread, 0.18″ long [0.46cm]

Output Cable

Cable Length: 10.2″ (26cm)
Cable Color: Red PU Coated
Plug: Waterproof Male 3.5×1.1mm

Warranty

2 year warranty on solar panels
For more warranty information, see the warranty guide

Product Dimensions: 113.0mm x 89.0mm x 5.0mm / 4.4″ x 3.5″ x 0.2″

Product Weight: 67.0g / 2.4oz

Informazioni aggiuntive

Peso 0.1 kg
Dimensioni 3 × 1 × 2 cm
Brand

Adafruit
