Mini DC/DC Step-Down (Buck) Converter – 5V @ 1A output

Mini DC/DC Step-Down (Buck) Converter – 5V @ 1A output

16,18

In stock

16,18

Convertitore step-down (buck) DC/DC switching regulator. Output 1A a 5V, input 6.5-32VDC. Package SIP, compatibile con l?impronta TO-220 (di un classico 7805, ad esempio).

Availability: 1 in stock SKU: AD1065 Categories: ,
View basket

Description

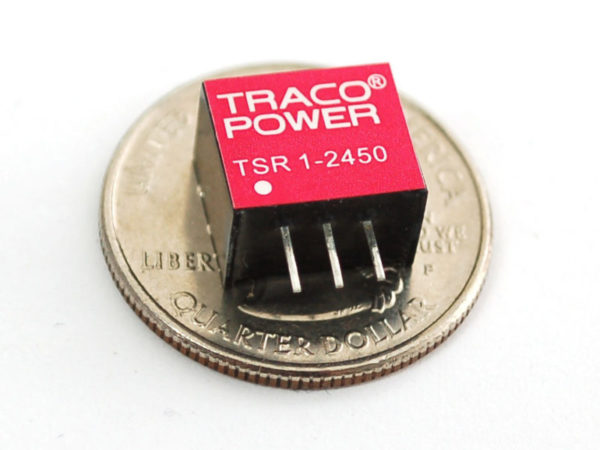

Your power supply problems just got SOLVED! These DC/DC converter step-down switching regulators are drop-in replacements for inefficient 78xx linear regulators. The little module may look tiny but inside is a high efficiency converter (up to 94%) which can output 1 Amp at 5V with up to +60°C ambient temperature without the need of any heat-sink or forced cooling.

The TSR-1 switching regulators provide other significant features over linear regulators, i.e. better output accuracy (±2 %), lower standby current of 2 mA and no requirement of external capacitors. The high efficiency and low standby power consumption makes these regulators an ideal solution for many battery powered applications.

We suggest adding an additional 10uF+ capacitance on the input for additional stability

5V regulated output from 6.5 – 32VDC input
Up to 94% efficiency – No heat-sink required
Pin compatible with LMxx linear regulators
SIP-package fits existing TO-220 footprint
Built in filter capacitors
Operation temp. range -40°C to +85°C
Short circuit protection
Wide input operating range
Excellent line / load regulation
Low standby current
3-year product warranty

Datasheet for the TSR DC/DC step-down modules

Additional information

Weight 0,05 kg
Dimensions 5 × 1 × 3 cm
Brand

Adafruit
