2.4GHz Antenna – Adhesive (U.FL Connector)

2.4GHz Antenna – Adhesive (U.FL Connector)

4,92

Disponibile

4,92

Disponibile: 2 disponibili COD: WRL-11320 Categoria:
Visualizza carrello

Descrizione

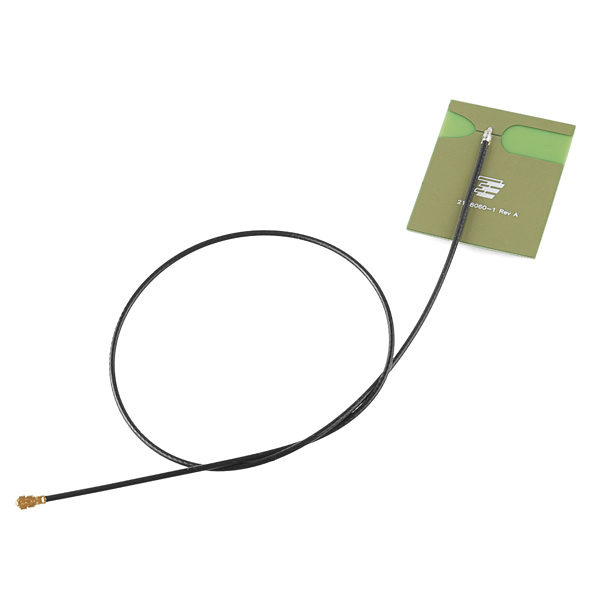

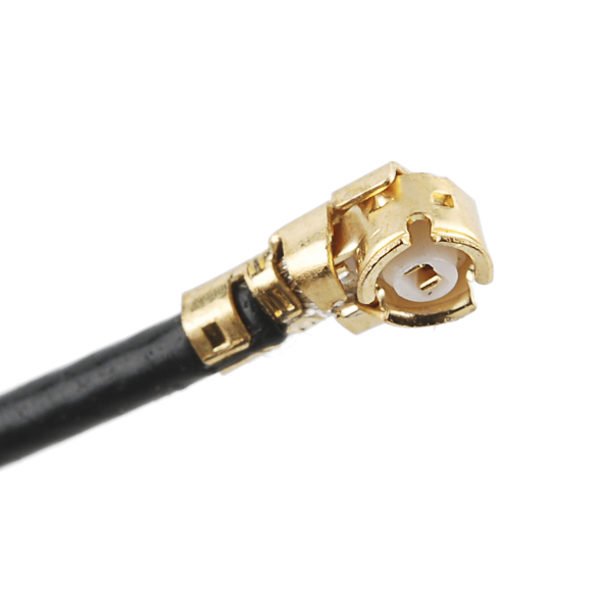

This adhesive, omni-directional antenna is perfect for situations when you’re trying to get a signal out from a transmitter that you’ve jammed down into an enclosure. Operating on the 2.4GHz band, it works great for WiFi, Bluetooth or ZigBee. Just connect the antenna using the attached u.fl connector and then peel and stick!

Dimensions: 41 x 30mm, 350mm cable

Features:

Type: Omni-Directional
Dual Frequency Range: 2300 to 3800MHz & 5150 to 5875MHz
Impedance: 50 Ohm
Maximum VSWR: 3
Typical Gain: 2(Max) dB

Documents:

Datasheet
Mechanical Drawing

Informazioni aggiuntive

Peso 0.05 kg
Dimensioni 5 × 1 × 3 cm
Produttore

Senza marca/Generico

MPN

WRL-11320

Brand

Sparkfun
