HDMI 10″ LCD Screen Kit (1024×768)

HDMI 10″ LCD Screen Kit (1024×768)

129,00

In stock

129,00

Availability: 1 in stock SKU: PIM431 Categories: , ,
View basket

Description

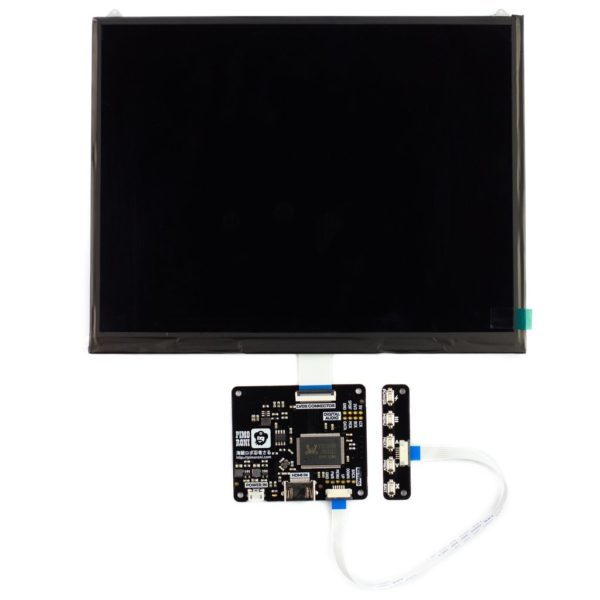

We use this 10″ screen (1024×768) in our 10″ Picade, and this screen kit with Pimoroni-made display driver board and keypad is great for DIY arcade builds, or to upgrade your older Picade (pre-2018) to a larger display.

This panel has great viewing angles, and the 4:3 aspect ratio is perfect for retro games. We've made our own high-quality HDMI>LVDS display driver board to drive the panel, with some nice bells and whistles like the ability to break out the I2S audio, or to add your own buttons to control the display and navigate the menus.

Just supply the display driver board with a good-quality 5V / 1A supply through a micro-USB cable or power supply and you're good to go!
Display features

1024×768 resolution
Wide viewing angle display
Brightness: 300 cd/m2 (nits)
Outer dimensions: 210.16×164.25×2.85mm
Active screen area: 196.61×147.46mm
Weight: 238g

Display driver board features

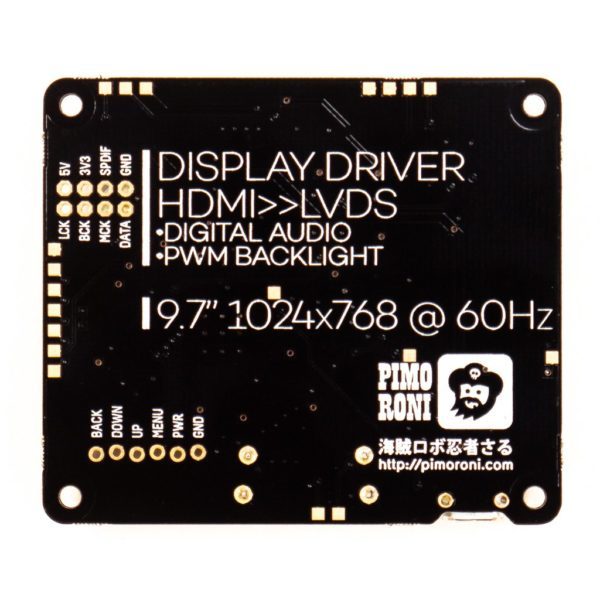

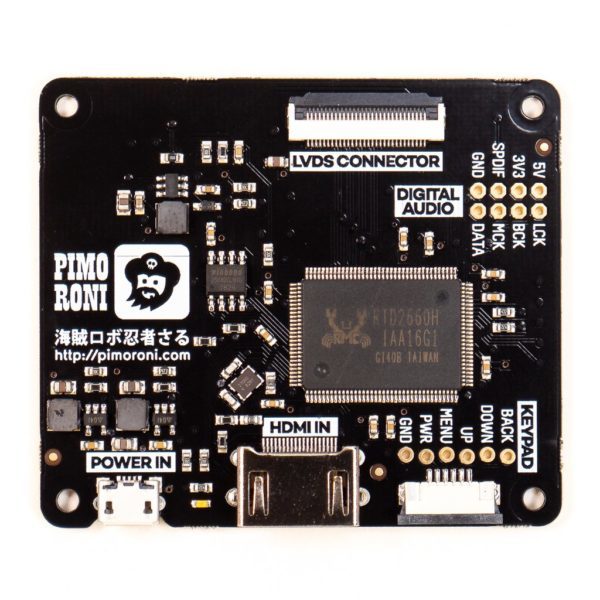

Pimoroni-made display driver board (HDMI>LVDS)

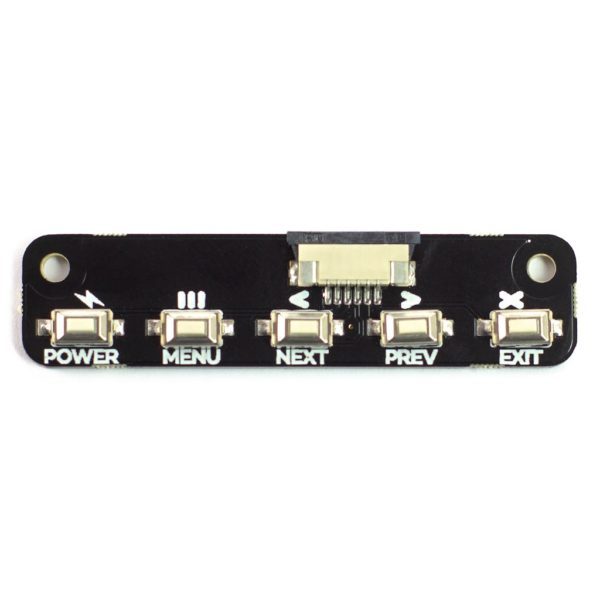

Keypad and controllable backlight brightness, contrast, and saturation
HDMI input
Power supply: 5V / 1A
Driver board dimensions: 65×56.5×8.5mm
Display ribbon cable length: 50mm
Keypad dimensions: 56×13.5×4.25mm
Keypad ribbon cable length: 20cm

Additional information

Weight 0,3 kg
Dimensions 15 × 10 × 1 cm
Produttore

Senza marca/Generico

MPN

PIM431

Brand

Pimoroni

Caratteristiche

Raspberry Pi 4
