Basic 16×2 Character LCD – White on Black 5V

Basic 16×2 Character LCD – White on Black 5V

19,56

In stock

19,56

Availability: 1 in stock SKU: LCD-00709-F10 Category:
View basket

Description

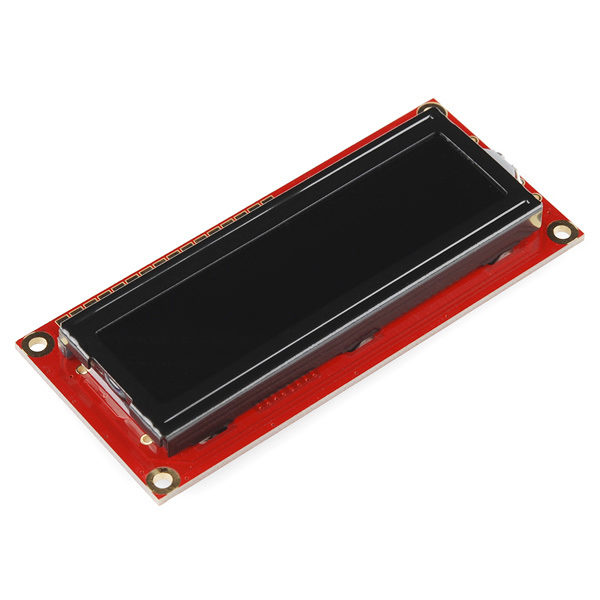

This is a basic 16 character by 2 line display with a snazzy black background with white characters. Utilizes the extremely common HD44780 parallel interface chipset (datasheet). Interface code is freely available. You will need ~11 general I/O pins to interface to this LCD screen. Includes white LED backlight.

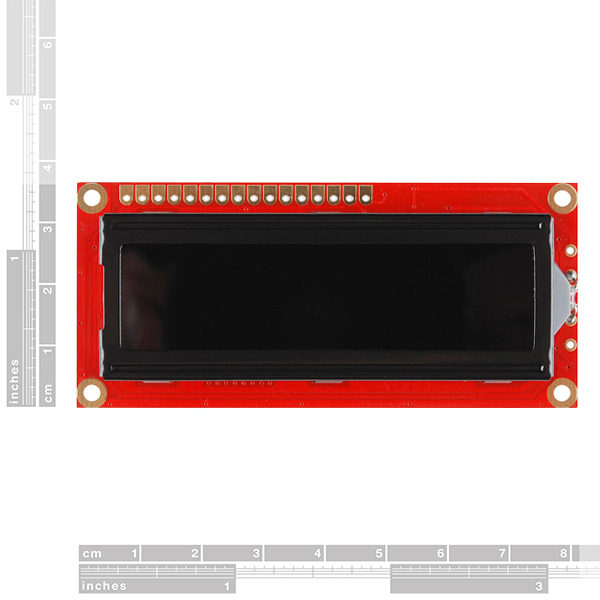

Dimensions: 3.15″ x 1.425″

Documents:

GDM1602K.pdf
Extended Datasheet
mbed Example
AVR Example
Character Generator

Additional information

Weight 0,05 kg
Dimensions 5 × 1 × 3 cm
Brand

Sparkfun

Produttore

Senza marca/Generico

MPN

LCD-00709-F10
