ARDUINO DIPOLE ANTENNA

ARDUINO DIPOLE ANTENNA

4,86

In stock

4,86

Availability: 1 in stock SKU: ARD-X000016 Categories: , Tags: ,

Description

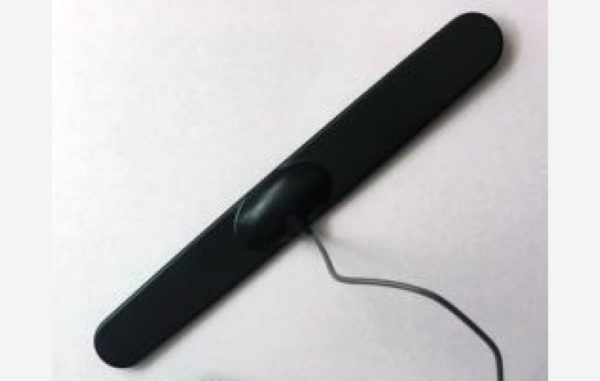

GSM antenna  (850/900/1800/1900 MHz ) that can be attached to the board with the micro UFL connector.

Suitable for MKRFOX1200, MKR WAN and MKR GSM.

GSM 850 (824-894 MHZ)

Gain <0 dBi

VSWR <2

Impedance 50 OHM

Polarization linear

GSM 900 (890-960 MHZ)

Gain <1 dBi

VSWR <2

Impedance 50 OHM

Polarization linear

GSM 1800 (1710-1880 MHZ)

Gain <1 dBi

VSWR <2

mpedance 50 OHM

Polarization linear

GSM 1900 (1850-1990 MHZ)



Gain <0 dBi



VSWR <2,2



Impedance 50 OHM



Polarization linear



Main Specifications UMTS (1900-2200 MHz)



Gain <0 dBi



VSWR <2,5



Impedance 50 OHM



Polarisation linear



Dimensions & Al.



Dimensions 130x16x5 mm

Additional information

Weight 0,1 kg
Dimensions 13 × 2 × 1 cm
Produttore

Melopero Electronics

MPN

ARD-X000016
