Arduino 9 Axes Motion Shield

Arduino 9 Axes Motion Shield

28,35

Esaurito

28,35

Versione disponibile:: Esaurito COD: RA000070 Categorie: , , , ,

Informami quando l'articolo è disponibile.

Descrizione

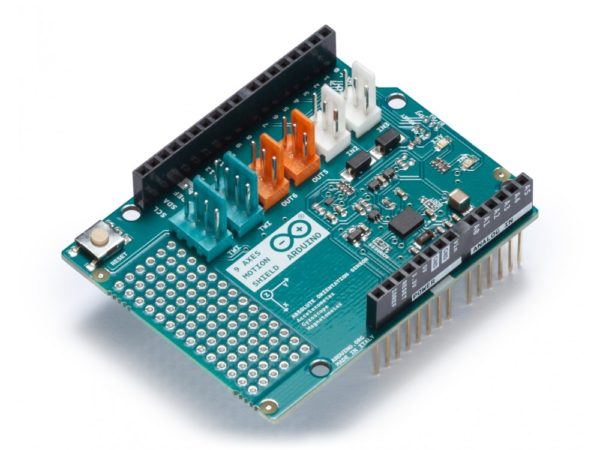

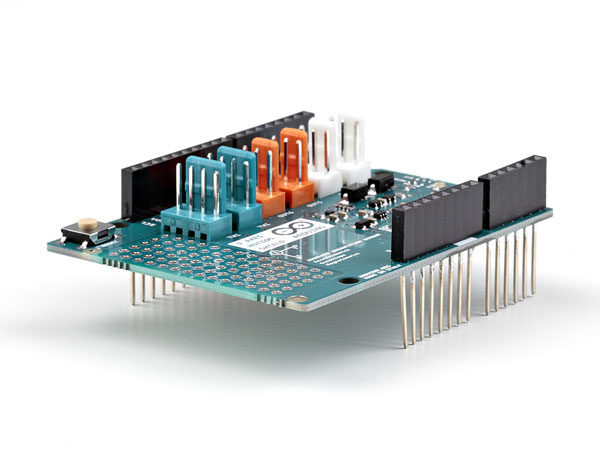

The Arduino 9 Axes Motion Shield is based on the BNO055 absolute orientation sensor (datasheet) from Bosch Sensortec GmbH. The BNO055 is a System in Package (SiP), integrating a triaxial 14-bit accelerometer, a triaxial 16-bit gyroscope with a range of ±2000 degrees per second, a triaxial geomagnetic sensor and a 32-bit microcontroller running the BSX3.0 FusionLib software.
The sensor features three-dimensional acceleration, yaw rate and magnetic field strength data each in 3 perpendicular axes.
 It also provides the sensor fusion signals such as

Quaternion
Euler angles
Rotation vector
Linear acceleration
Gravity vector

In addition, it incorporates an intelligent interrupt engine, which allows for triggering interrupts based on

slow or no motion recognition
any motion (slope) detection
high-g-detection.

The shield is TinkerKit compatible, which means you can quickly create projects by plugging TinkerKit modules to the board.

Operating Voltage 5V, Power Consumption 50mW.
INFO TECNICHE:
Pagina del Produttore
BNO055 Controller datasheet
EAGLE CAD files
Schematic [pdf]

Informazioni aggiuntive

Peso 0,05 kg
Dimensioni 5 × 1 × 3 cm
Produttore

Senza marca/Generico

MPN

RA000070

Brand

Arduino
