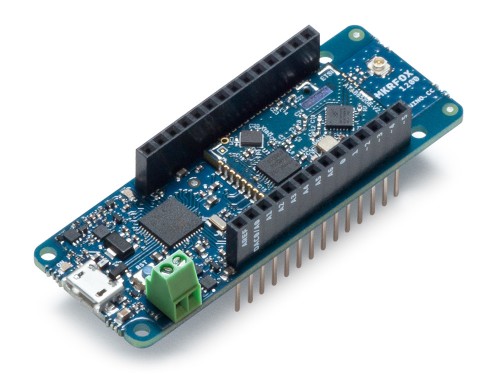

ARDUINO MKR FOX 1200 withOUT Dipole Antenna

ARDUINO MKR FOX 1200 withOUT Dipole Antenna

46,80

Esaurito

46,80

Versione disponibile:: Esaurito COD: ARD-ABX00014 Categorie: , , ,

Informami quando l'articolo è disponibile.

Descrizione

Arduino MKR FOX 1200 has been designed to offer a practical and cost effective solution for makers seeking to add SigFox connectivity to their projects with minimal previous experience in networking. It is based on the Atmel SAMD21 and a ATA8520 SigFox module.
The design includes the ability to power the board using two 1.5V AA or AAA batteries or external 5V. Switching from one source to the other is done automatically. A good 32 bit computational power similar to the Zero board, the usual rich set of I/O interfaces, low power SigFox communication and the ease of use of the Arduino Software (IDE) for code development and programming. All these features make this board the preferred choice for the emerging IoT battery-powered projects in a compact form factor. The USB port can be used to supply power (5V) to the board. The Arduino MKR FOX 1200 is able to run with or without the batteries connected and has limited power consumption.
Warning: Unlike most Arduino & Genuino boards, the MKRFOX1200 runs at 3.3V. The maximum voltage that the I/O pins can tolerate is 3.3V. Applying voltages higher than 3.3V to any I/O pin could damage the board. While output to 5V digital devices is possible, bidirectional communication with 5V devices needs proper level shifting.
You can find here your board warranty informations.
Check your area coverage on the SigFox website
The MKR FOX 1200 is shipped with a GSM antenna that can be attached to the board with the micro UFL connector. If you want to change the antenna please check that it can accept frequencies in the SigFox's range (868 Mhz).
Please note: for best result, do not attach the antenna to a metallic surface like car chassis, etc.
Getting Started
You can find in the Getting Started section all the information you need to configure your board, use the Arduino Software (IDE), and start tinker with coding and electronics. Full details and examples on how to use the SigFox interface are available in the SigFox Library reference page.
Need Help?

Microcontroller
SAMD21 Cortex-M0+ 32bit low power ARM MCU

Board Power Supply (USB/VIN)
5V

Supported Batteries(*)
2x AA or AAA

Circuit Operating Voltage
3.3V

Digital I/O Pins
8

PWM Pins
12 (0, 1, 2, 3, 4, 5, 6, 7, 8, 10, A3 – or 18 -, A4 -or 19)

UART
1

SPI
1

I2C
1

Analog Input Pins
7 (ADC 8/10/12 bit)

Analog Output Pins
1 (DAC 10 bit)

External Interrupts
8 (0, 1, 4, 5, 6, 7, 8, A1 -or 16-, A2 – or 17)

DC Current per I/O Pin
7 mA

Flash Memory
256 KB

SRAM
32 KB

EEPROM
no

Clock Speed
32.768 kHz (RTC), 48 MHz

LED_BUILTIN
6

Full-Speed USB Device and embedded Host

LED_BUILTIN
6

Antenna power
2dB

Carrier frequency
868 MHz

Working region
EU

Length
67.64 mm

Width
25 mm

Weight
32 gr.

Documents:

Product page

SCHEMATICS IN .PDF

EAGLE FILES.ZIP

Informazioni aggiuntive

Peso 0,05 kg
Dimensioni 5 × 1 × 3 cm
Produttore

Senza marca/Generico

MPN

ARD-ABX00014

Brand

Arduino
