USB Logic Analyzer – 25MHz/8-Channel

USB Logic Analyzer – 25MHz/8-Channel


Out of stock


Availability: Out of stock SKU: TOL-15033-L4 Category: Tag:

Informami quando l'articolo è disponibile.

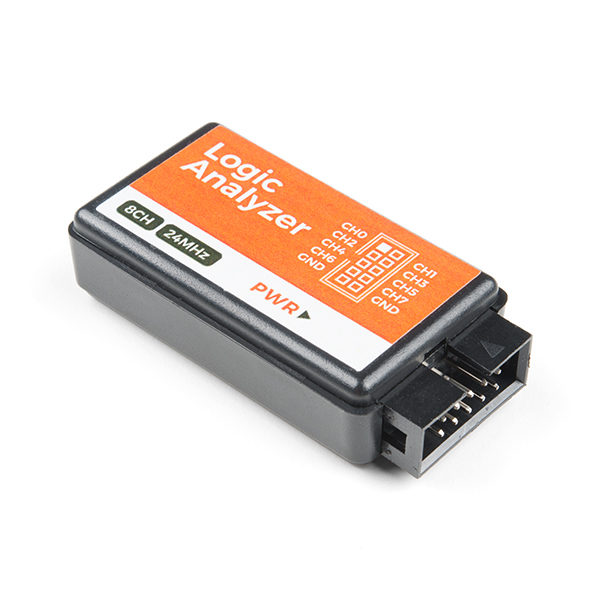

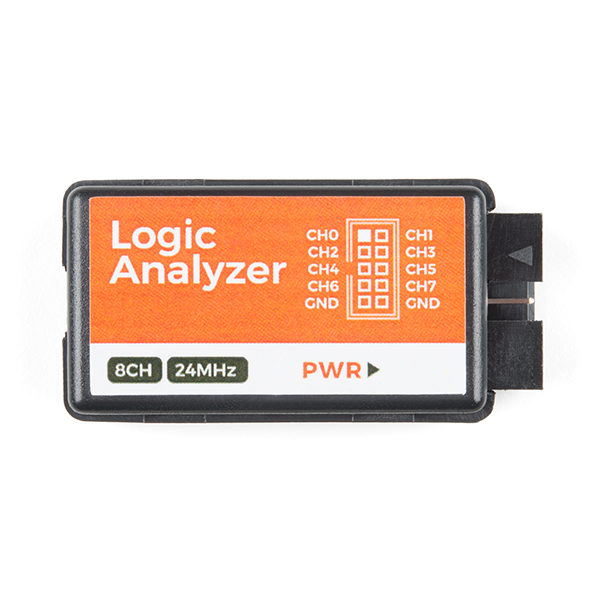

s your I2C bus not ACK'ing the way you expect? Do you need to discover a UART's mysterious baud rate? Or do you want to reverse engineer an SPI protocol? These all sound like jobs for a logic analyzer! With the growing ubiquity of UART, I2C, and SPI sensors, logic analyzers are becoming a tool everyone needs in their toolbox or on their workbench. This 8-channel USB Logic Analyzer with support for sampling rates of up to 24MHz provides a good while economic option making it a great tool for quickly diagnosing most communication issues we encounter.

These analyzers will work with both 3.3V and 5V systems (up to 5.25V max and 2.0V minimum on a high logic-level) and is powered via an included mini-B USB cable. This logic analyzer works with PulseView — an open-source, cross-platform signal analysis software suite.


Sampling rate up to 24MHz, configurable down to 20kHz
5.25V maximum voltage input

2.0V minimum logic-high
0.8V maximum logic-low

Input impedance > 100k?, 5pF
USB power supply
Supports open-source sigrok logic analyzer software
Cross-platform support: Windows, Mac OS X, Linux, Android, etc.
Dimensions: 54.7 x 27.4 x 14.1 mm
