SWD (2×5 1.27mm) Cable Breakout Board

SWD (2×5 1.27mm) Cable Breakout Board




Disponibilità: 2 disponibili COD: AD2743-M11 Categorie: , , ,
Visualizza carrello

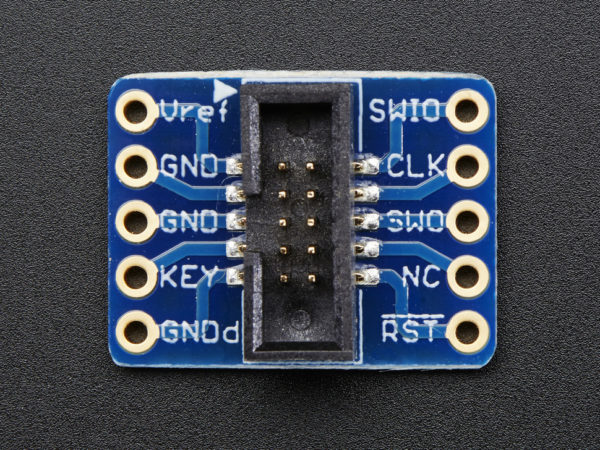

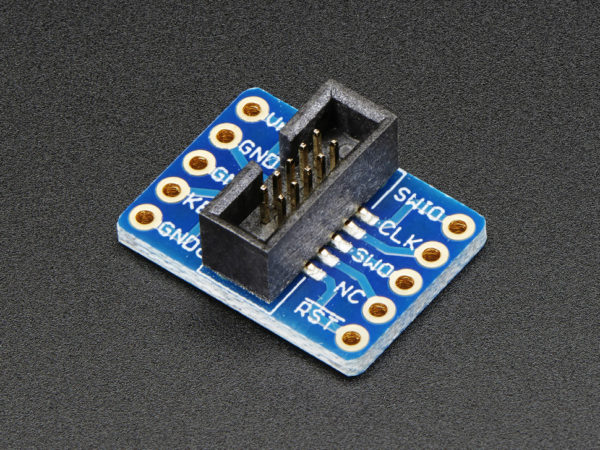

This adapter board is designed to make it easier to use ARM dev boards that use slimmer 2×5 (0.05″/1.27mm pitch) SWD cables for programming.  It’s helpful for using products like the JTAGulator, STLink or SEGGER J-Link with tiny boards that use the 10-pin SWD programming connector, often Cortex M0 or M3’s.

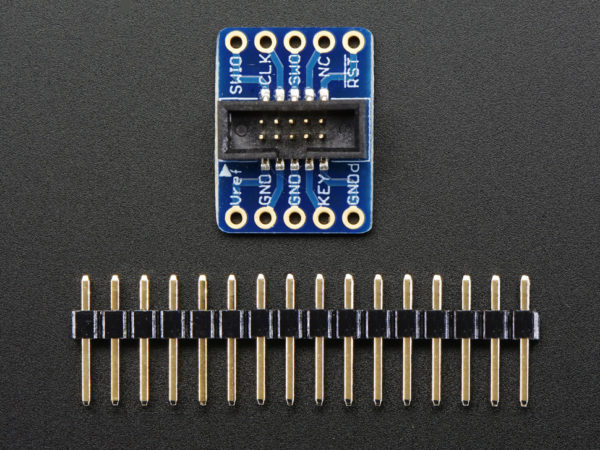

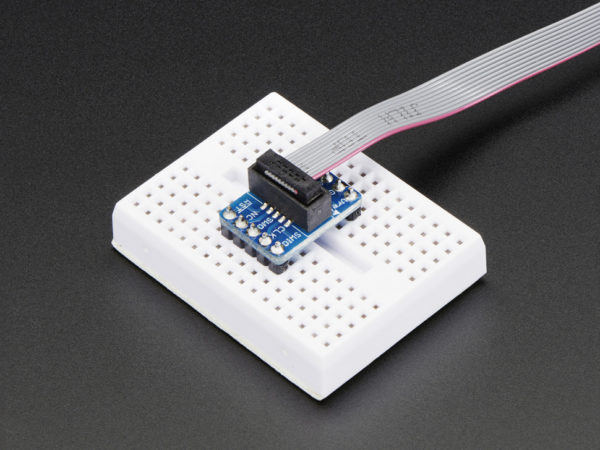

This board comes with no cables.  It’s really just the breakout board and some header if you need it – but is super helpful when you want to use JTAG/SWD debugging. We do stock the SWD cable if you need one here and have a ‘classic’ JTAG to SWD converter board here.

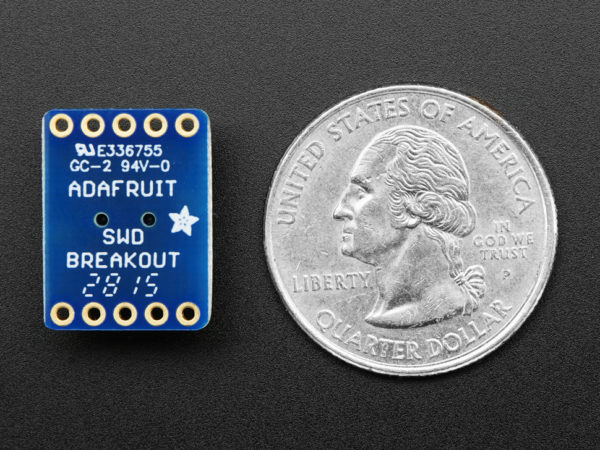

14mm x 18mm x 7mm / 0.55″ x 0.7″ x 0.3″
Weight: 1g

Pagina del Produttore

Informazioni aggiuntive

Peso 0,05 kg
Dimensioni 5 × 1 × 3 cm
