Picade X HAT USB-C
Picade X HAT USB-C
Informami quando l'articolo è disponibile.
- Additional information

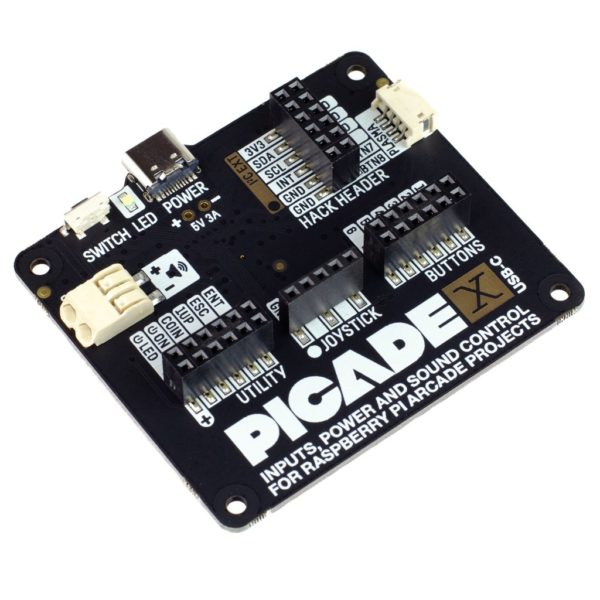

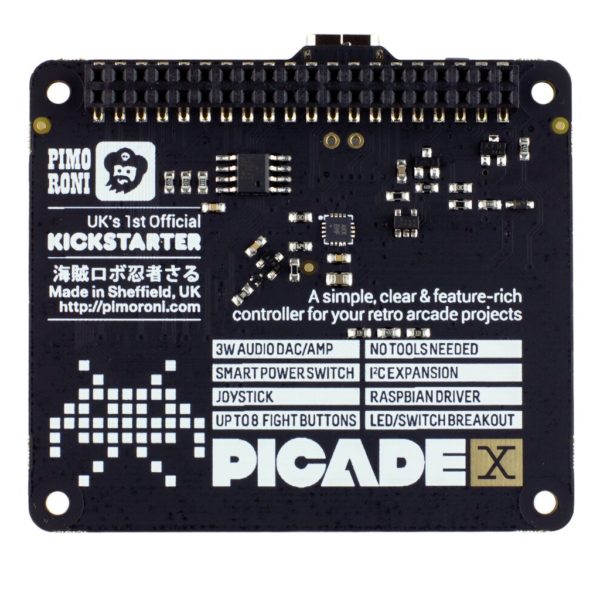

Turn your Raspberry Pi into a retro games console! Picade X HAT includes joystick and button inputs, a 3W I2S DAC/amplifier, and soft power switch. Nice!
Picade X HAT is now Raspberry Pi 4 compatible, with USB-C power!
This HAT has all the same great features as the original Picade HAT but now has no-fuss female Dupont connectors to hook up your joystick and buttons.
Simply pop Picade X HAT onto your Pi, plug a USB-C power supply into the connector on the HAT (it back-powers your Pi through the GPIO, so no need for a separate power supply), wire up your controls, and install our driver! It's ideal for your own DIY arcade cabinet builds, or for interfaces that need big, colourful buttons and sound.
We'd recommend also picking up one of our new Picade wiring looms to go with Picade X HAT. It has all the cables you'll need to connect up buttons and a joystick (with 5-pin connector) to Picade X HAT.
I2S audio DAC with 3W amplifier (mono) and push-fit terminals
Safe power on/off system with tactile power button and LED
USB-C connector for power (back-powers your Pi)
4-way digital joystick inputs
6x player button inputs
4x utility button inputs
1x soft power switch input
1x power LED output
Plasma button connector
Breakout pins for power, I2C, and 2 additional buttons

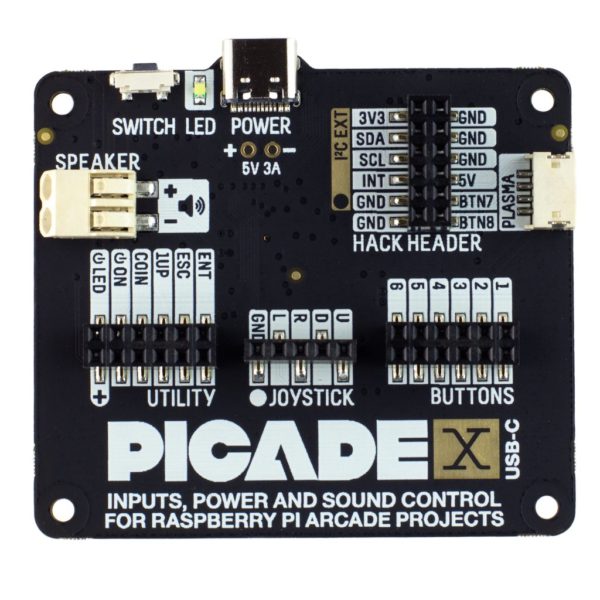

Picade X HAT pinout
Compatible with all 40-pin Raspberry Pi models
The I2S DAC blends both channels of digital audio from the Raspberry Pi into a single mono output. This is then passed through a 3W amplifier to power a connected speaker.
The board also features a soft power switch that allows you turn your Pi on and off safely without risk of SD card corruption. Tap the connected button to start up, and press and hold it for 3 seconds to fully shutdown and disconnect power.
We've put together a simple one-line installer that'll get everything set up on your Picade X HAT, the controls, safe shutdown, and audio. Open a terminal and type curl https://get.pimoroni.com/picadehat | bash to run the installer. You'll need to reboot once the installation is complete, if it doesn't prompt you to do so.
Our software does not support Raspbian Wheezy
With USB-C power connected through Picade X HAT you'll need either to tap the connected power button or the button marked “switch” on the HAT to power on your Pi.
|Dimensions||10 × 5 × 5 cm|
