Big Dome Pushbutton – Red

Big Dome Pushbutton – Red

11,37

In stock

11,37

Availability: 1 in stock SKU: COM-09181 Categories: ,
View basket

Description

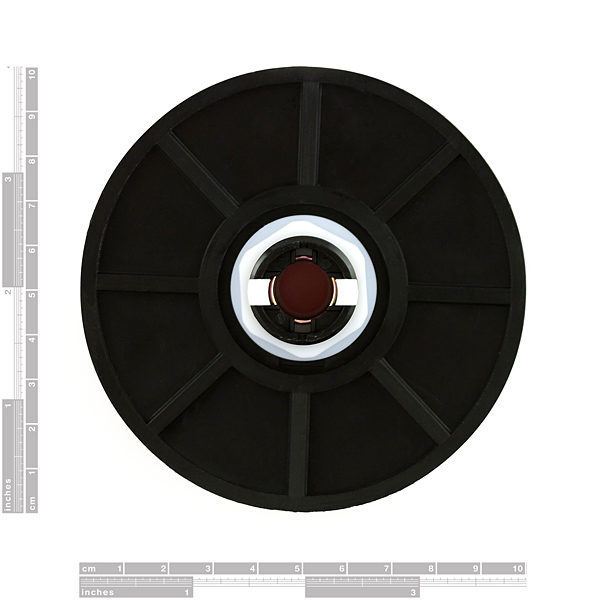

It’s the end of the world, and you need a button to press. This is it. A 100mm diameter (outside diameter) dome illuminated push button comes with an LED, securing nut and a pre-installed long life horizontal microswitch. Button can also be adjusted to a low profile button by removing the middle ring.

Features:

LED indicator light runs at 12VDC
Bulb holder is easy to install or remove
3 Terminals Button Actuator microswitch included
Microswitch reliability tested to 10,000,000 cycles
Microswitch can be replaced
Polycarbonate lens cap for optical clarity

Dimensions:

100 mm Diameter x 72 mm Height
Net weight: 100grams
Mounting hole diameter: 24 mm

Documents:

Whack-Dome Demo Video
Whack-Dome Demo Sketch

Additional information

Weight 0,2 kg
Dimensions 8 × 5 × 8 cm
Produttore

Senza marca/Generico

MPN

COM-09181

Brand

Sparkfun
