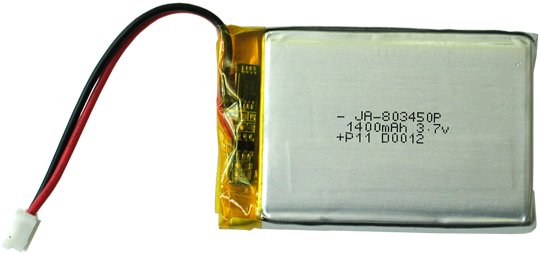

Rechargable Li-Po Battery 3.7V 1400mAh with JST connector

Rechargable Li-Po Battery 3.7V 1400mAh with JST connector

10,90

Out of stock

10,90

Availability: Out of stock SKU: MEL-BAT-1400-F3 Categories: ,

Informami quando l'articolo è disponibile.

Description

FEATURES

Charge voltage 4.2V, nominal voltage 3.7V, cut-off voltage 3.0V
Recommended charge current 280mA
Max charge current 700mA
Recommended discharge current 700mA
Max discharge current 1400mA
Impedance 60mOhm at 1KHz
Operating temperature: at charge 0-55C, at discharge -25C+60C
Capacity loss after 500 cycles full charge/discharge at 20C: 20%
Dimensions 50x34x8mm

The battery has overcharge and short circuit protection.

Documents:

Datasheet
MSDS

Additional information

Weight 0,05 kg
Dimensions 5 × 1 × 3 cm
Brand
