Polymer Lithium Ion Battery – 1000mAh

Polymer Lithium Ion Battery – 1000mAh


Out of stock


Availability: Out of stock SKU: PRT-13813 Categories: , Tag:

Informami quando l'articolo è disponibile.

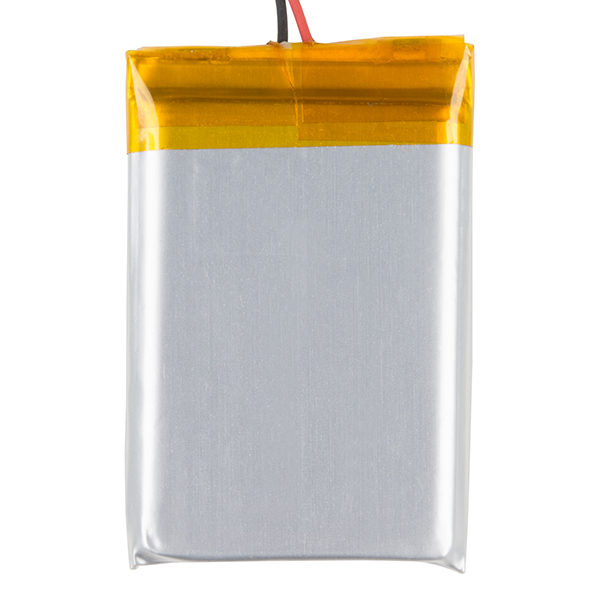

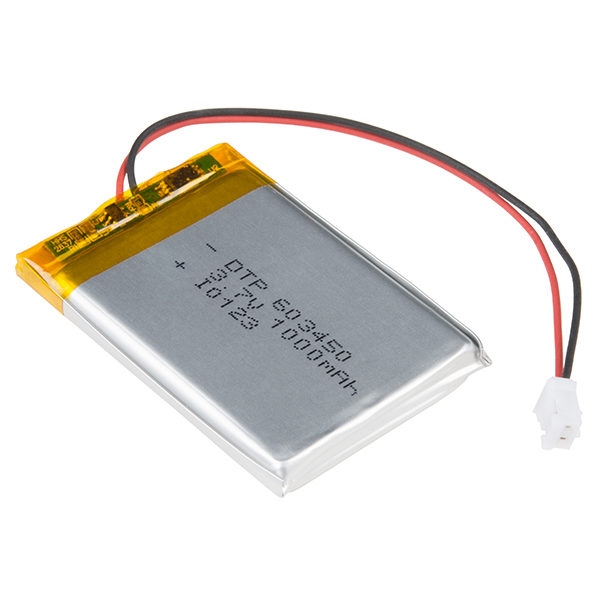

These are very slim, extremely light weight batteries based on the new Polymer Lithium Ion chemistry. This is the highest energy density currently in production. Each cell outputs a nominal 3.7V at 1000mAh! Comes terminated with a standard 2-pin JST-PH connector – 2mm spacing between pins. These batteries require special charging. Do not attempt to charge these with anything but a specialized Lithium Polymer charger.

Battery includes built-in protection against over voltage, over current, and minimum voltage. Please use caution when using this battery in wearable projects. When using conductive thread, a short in the thread can create sparks and heat. We recommend using coin cell batteries for beginners.

Note: Due to the requirements of shipping these batteries, only two batteries can be shipped together at one time and orders may take longer to process and therefore do not qualify for same-day shipping. Sorry for any inconvenience this may cause.

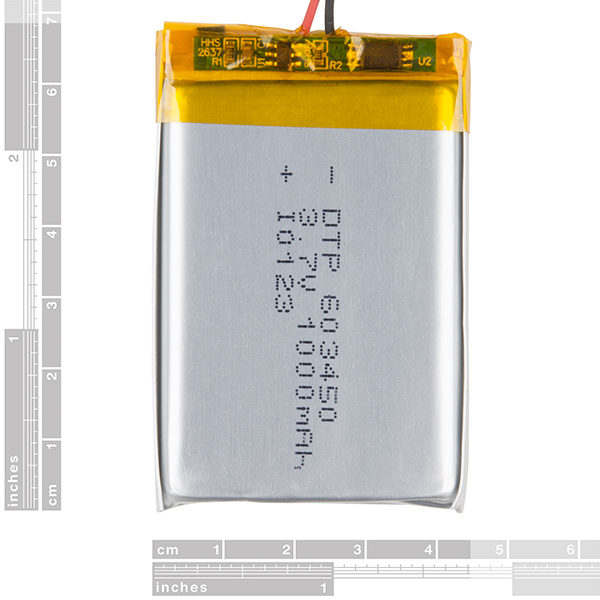

Dimensions: 2.00 x 1.32 x 0.23″ (50.8 x 33.5 x 5.9 mm)

Weight: 22g (0.77oz)


Excellent long-term self-discharge rates (<8% per month) Robust power source under extreme conditions (-25 to 60C) Documents: JST Connector  MSDS  Sparkfun Product Page

Additional information

Weight 0,05 kg
Dimensions 5 × 1 × 3 cm

Senza marca/Generico
