Lithium Ion Polymer Battery – 3.7v 100mAh

Lithium Ion Polymer Battery – 3.7v 100mAh


Out of stock


Batteria litio-ione-polimero (Li-Poly o LiPo), tensione d?uscita da 4.2V (completamente carica) a 3.7V. Capacità 100mAh. Ne abbiamo diversi modelli QUI.

Availability: Out of stock SKU: AD1570 Categories: , Tag:

Informami quando l'articolo è disponibile.

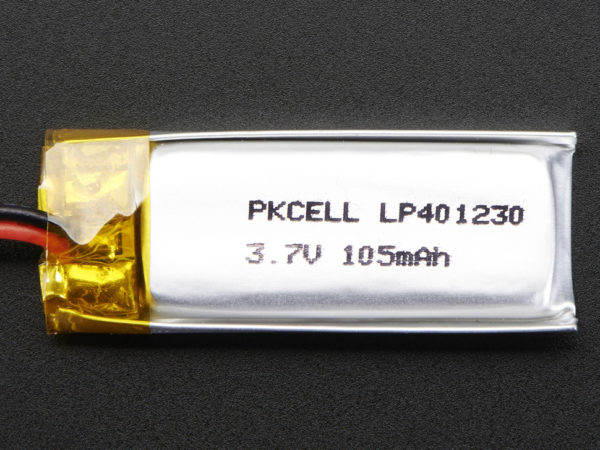

Lithium ion polymer (also known as 'lipo' or 'lipoly') batteries are thin, light and powerful. The output ranges from 4.2V when completely charged to 3.7V. This battery has a capacity of ~100mAh for a total of about 0.4 Wh. If you need a larger battery, we have a full range of bigger cells

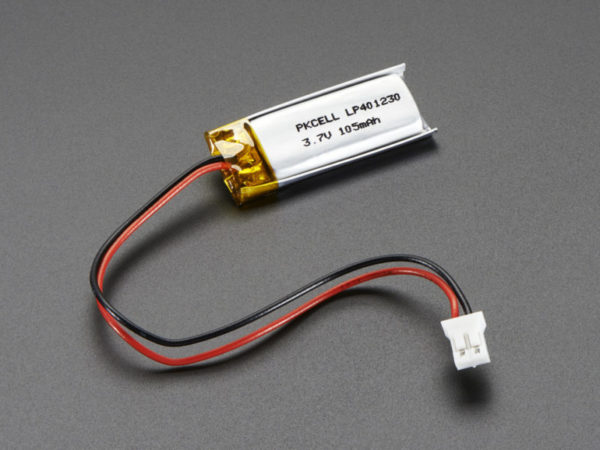

The batteries come pre-attached with a genuine 2-pin JST-PH connector as shown and include the necessary protection circuitry. Because they have a genuine JST connector, not a knock-off, the cable wont snag or get stuck in a matching JST jack, they click in and out smoothly.

The included protection circuitry keeps the battery voltage from going too high (over-charging) or low (over-use) which means that the battery will cut-out when completely dead at 3.0V. It will also protect against output shorts. However, even with this protection it is very important that you only use a LiIon/LiPoly constant-voltage/constant-current charger to recharge them and at a rate of 100mA or less. We suggest our Micro Lipo charger, which has a 100mA default rate.
Like most lipos, the batteries we sell do not have thermistors built in. This is why we suggest charging at 1 C or even less – 100mA is a good rate, and available from any USB port if using a USB-powered charger

Additional safety notes: Do not use a NiMH/NiCad/lead-acid charger! Also, do not abuse these batteries, do not short, bend, crush or puncture. As with all Lithium ion polymer batteries and with any power source – they should be used by experts who are comfortable working with power supplies.



Weight: 3g

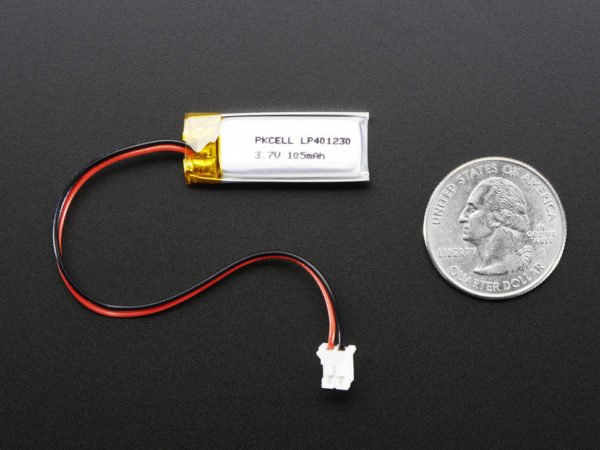

Size: 11.5mm x 31 x 3.8mm / 0.45″ x 1.2″ x 0.15″
JST-PH Connector Length: 105mm / 4.1″
Output: 100mAh at 3.7V nominal


Additional information

Weight 0,05 kg
Dimensions 5 × 1 × 3 cm
